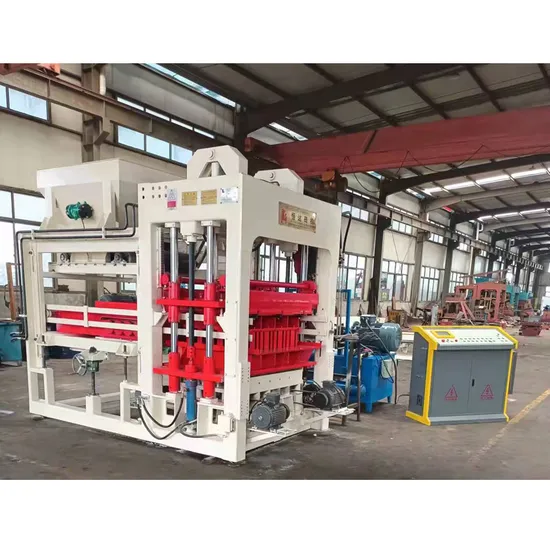

QT10-15 concrete block making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the paver block machine price utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this paver block machine price is composed of integrated modular units from Germany and Italy.
Main Technical Specifications of QT10-15 concrete block making machine
Production per mould
| 10pcs/mould (Hollow block: 390×190×190mm)
|
48pcs/mould (Solid block: 240×115×53mm)
|
24pcs/mould (Interlocking block: 225×112.5×60mm)
|
35pcs/mould (Holland brick: 200×100× 60-80mm)
|
Cycle time
| 15-25 seconds(Depending on product type)
|
Production per shift
(8 working hours)
| Hollow block (400×200×200mm): 14400-19200pcs
|
Solid block (240×115×53mm): 77760-92160pcs
|
Interlocking block: 240×115×90mm): 31104-46080pcs
|
Holland brick (200×100×60-80mm): 40320-50400pcs.
|
Vibration frequency
| 2940 -3600rolls/minute or 50Hz
|
Vibrating force
| 100kN
|
Motors power
| 48kw
|
Volume of hoppers
| Main material: 900L
|
Face material: 750L
|
PVC Pallet size
| 1100×850×22mm
|
Gross weight
| 9.0 T (without face mix device)
|
12T (with face mix device)
|
Raw materials
| Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste.
|
Applicable products
| Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
Applied fields
| Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc.
|
We are clay brick machine and concrete block making machine manufacturer, welcome to inspect our factory.
