Single Facer Corrugated Paper Making Machine

US$14,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

single face corrugated paper making machine

Condition

New

Certification

RoHS, ISO 9001:2000, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Recycled Material, Paper

Paper Thickness

Corrugated Cardboard

Item

Corrugated Cardboard Single Facer Machine

Size

1800/2200/2500

Type

Packaging Line

Name

Carton Box Making Machine

Function

Corrugated Box Machine

Usage

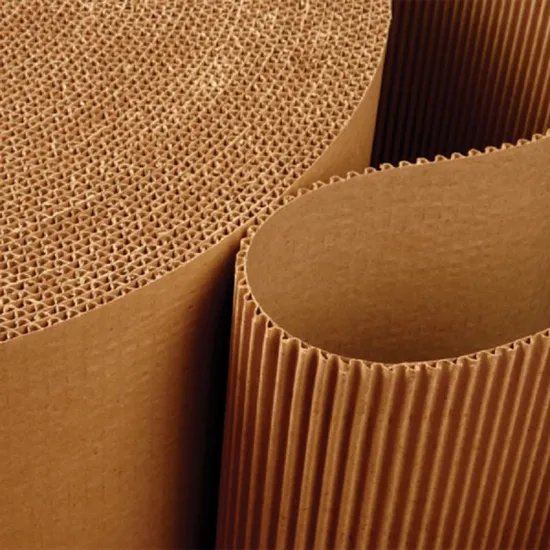

Making Corrugated Cardboard

OEM

Speed

60m/Min

Machinery Test

Provided

Application

Food, Beverage, Commodity, Medical, Chemical

Voltage

380V/415V/440V

Delivery Time

30days

Use for

2/3/5 Layers Line Width 1800-2500mm

Transport Package

Standard Packaging

Specification

Standard

Trademark

YIKE Group

Origin

China

HS Code

84413090

Production Capacity

50sets/Month

Product Description

regular technical parameters:
1,effective width:1600mm
2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min
4,temperature range:200-260ºC
5,corrugated flute:(UV type or UVV type)
roller diameters parameters:
1,diameter of corrugated roller: ¢280mm
2,diameter of pressure roller: ¢284mm
3,diameter of glue roller: ¢216mm
4,diameter of preheat roller: ¢320mm
powered motor parameters:
1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
main purchased parts,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Wall and Pedestals	Production own	HT200
Rotary joints and metal hoses	Shan dong teng zhou luguanqiu
Main drive motor	Hebei Hengshui	7.5Kwspeed motor
bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
High pressure air	Shanghai Yingfa
cylinder	Zhengjiang Sanzheng
contacts	Chint or de li xi
