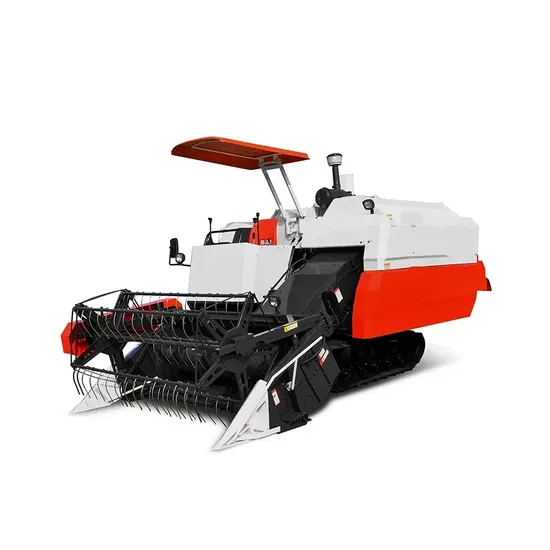

China Famous Harvester Brand AF88G 88HP Small Rice Combined Harvester for Sale Product Description
AF88 is a universal combined harvester applicable for all the landforms and with such advantages as high operating efficiency, complete cleaning, good anti-bogging performance, excellent lodging effect and multi-purpose function.Operating condition: paddy field and dry farmland; it can be hooked with the oilseed or corn header.
Applicable region: Asia Pacific, Europe and America, Latin America, Africa and other regions.
| Production Type | AF88G |
| Item | High unloading |
| Dimension | Length(mm)(for working condition) | 5160 |
| Width(mm)(for working condition) | 2750 |
| height(mm)(for working condition) | 2750 |
| Weight(kg) | 2970 |
| Engine | Model | Dachai-DEUT ZCA498Z-09T2/01 |
| Structure Type | Four-stroke, in-line, vertical, water-cooled, and turbocharged diesel engine |
| Rated power(kw) | 65 |
| Rated speed (r/min) | 2400 |
| Fuel | Diesel (0#) |
| Fuel tank volume(L) | 95 |
| Traveling (chassis) | Rubber crawler | specification Link pitch(mm) Link quantity(link) Width(mm) | 90×51×450 |
| Track ground pressure(kpa) | 21.2 |
| Min. Ground Clearance(mm) | 285 |
| Gearbox Type | HST |
| Transmission type | (HST+3-gear) continuously variable-speed |
| Theoretical traveling speed(km/h) | low speed 0~3.96 Standard speed 0~5.14 Walk speed 0~7.37 |
| Header System | Header width(mm) | 2000 |
| Threshing System | Threshing type | Vertical type axial-flow bar tooth type |
| Threshing cylinder | Outer diameter(mm) | Φ620×1954 |
| Rotate speed(r/min) | 580 |
| Grain unloading system | Tank volume(L) | 1400 |
| Hopper(Pcs) | / |
| Unloading grain rotation range(Degree) | 270 |
| (mm)Unloading grain height range(mm) | 920~4200 |
| Electrolyte and others | Battery | Voltage(V) | 12 |
| Starting relay | Rated current(A) | 50 |
| Voltage(V) | 12 |
| Hydulic oil tank volume | 21 |
| Hourly production(h/h)(Vertical dry field crops environment) | ☆0.3~0.6 |
