US$28,000.00-38,000.00
|
1 set
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max. Turning Diameter
3150mm
Max. Workpiece Height
1600mm
Max. Workpiece Weight
10000kg
Tool Shank Section
40X40mm
Transport Package
Wooden Case
Specification
Overall size: 2360X2270X2800mm
Trademark
Dalian ZT Machinery
Production Capacity
200 Sets/Year

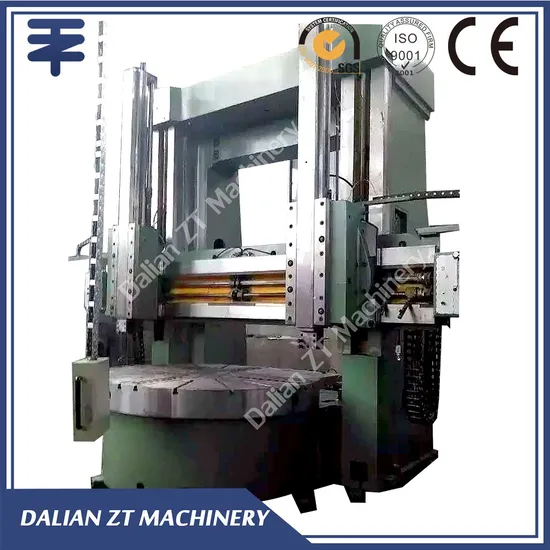

Product Description
Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming
| Specification | Unit | C5231 |
| Max turning diameter | mm | 3150 |
| Table diameter | mm | 2830 |
| Max height of workpiece | mm | 1600 |
| Max weight of the workpiece | t | 10 |
| Max torque of table | KN.m | 63 |
| Speed range of Table (16steps) | r/min | 2-63 |
| Max.cutting force of vertical tools | KN | 40 |
| Swivel degree of vertical tool | degree | ±30° |
| Tools feeding | mm/min | 0.2-145 |
| Horizontal travel of vertical tool post | mm | -20-1750 |
| Sliding travel of vertical tool post | mm | 1000 |
| Fast moving speed of tool post | mm/min | 1560 |
| Tool Bar section size | mm | 40×40 |
| Seat diameter | mm | φ1980 |
| Seat sliding sides | mm | φ1495 |
| Vertical sliding sides | mm | 450/400 |
| Sliding section size | mm | 250×200(T square sliding) |
| Beam sliding sides | mm | 650 |
| Main motor power | KW | 55 |
| Machine dimension | mm | 6050×4400×4930 |
| Machine weight | t | 34 |
| Configuration (optional) | Four axis DRO |
Parts supplied with machines
| Name | Specification | Q'ty | Remark |
| Chuck Jaw | | 4 sets | |
| Left and right tool clampers | Tool section 40x50 | 1 for each | |
| Tool bar | Tool section 22x22 | 1pcs | |
| Square socket banner | 24/27 | 1/1 set | |
| banner | S=17-19 | 1 pcs | |
| Banner connector/bending head banner | | 1 for each | |
| Hexgon sockets | 36,46,55 | 1 for each | |
| Allen banner | 10 | 1pcs | |
| blocks | | 17pcs | |
| Bolts | M24×500 | 17sets | |
| blocks | 80×80×6 | 10pcs | |
| Live move banner | 300 | 1pcs | |
| Pressure grease gun | | 1pcs | |
| Lathe working light | | 1set | |
| Flat and cross screwdriver | | 1 for each | |
PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
>>
