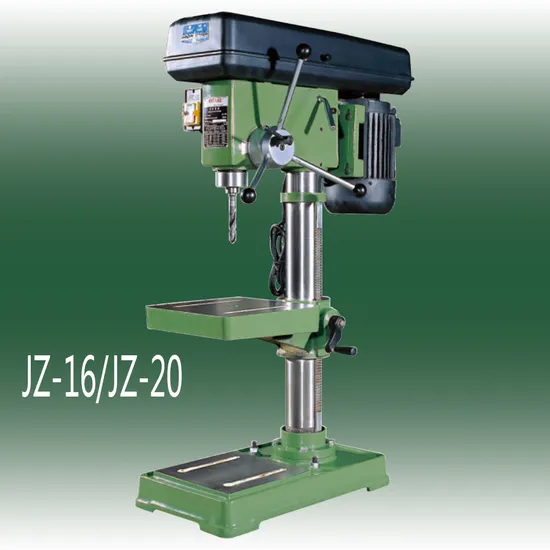

High Speed Industrial Bench Drill Jz-16 Table High Precision Vertical Drilling Machine Maximum Diameter 16 mm

US$1,040.00 1 Piece (MOQ)

Basic Info.

Model NO.
JZ-16
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
750W
Max Drilling Capacity
16 mm
Transport Package
Wooden Case
Specification
76*43*115cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model Z4116 Z4120 Z4025 JZ-16/JZ-20 JZ-25/JZ-32 ZX-40SD
Max.drilling capacity 16mm 20mm 25mm 16/20mm 25/32mm 31.5mm
Diameter of column 85mm 85mm 85mm 85mm 102mm 115mm
Spindle travel 125mm 125mm 120mm 93mm 130mm 120mm
Distance spindle axis to column surface 240mm 240mm 240mm 180mm 230mm 272.5mm
Maxdistancespindle nose to worktable 297mm 367mm 425mm 750mm 820mm
Max.distance spindle nose to base 560mm 630mm 450mm 610mm 990mm 1250mm
Spindle taper MT.2 MT.2 MT.3 MT.2 MT.3/MT.4 MT.3 or R8
Spindle speeds range 365-3150rpm 365-3150rpm 215-2000rpm 240-2800rpm 250-2900/160-1880rpm 95-1600rpm
Spindle speeds 5 5 5 9 9 6
Dimension of worktable surface 280x300mm 280x300mm 270x280mm 340x360 or 420mm 540x470mm
Dimension of base worktable surface 315x335mm 315x335mm 315X335mm 245x245mm 260x260mm 680x450mm
Overall height 1127mm 1127mm 772mm 1050mm 1560mm 1750mm
Motor 550W 750W 1100W 750W/1100W 1100/1500W 1100W
G.W/N.W. 155/129kg 155/129kg 155/135kg 120/106kg 217/190kg 360/305kg
Ship measurement 87x54x103cm 87x54x103cm 92X54X87cm 76x43x115cm 90x49x169cm 83x74x181cm
