Large Breaking Ratio Fine Jaw Crusher for Secondary Crushing Plant

Product Description

Large Breaking Ratio Fine Jaw Crusher for Secondary Crushing Plant:

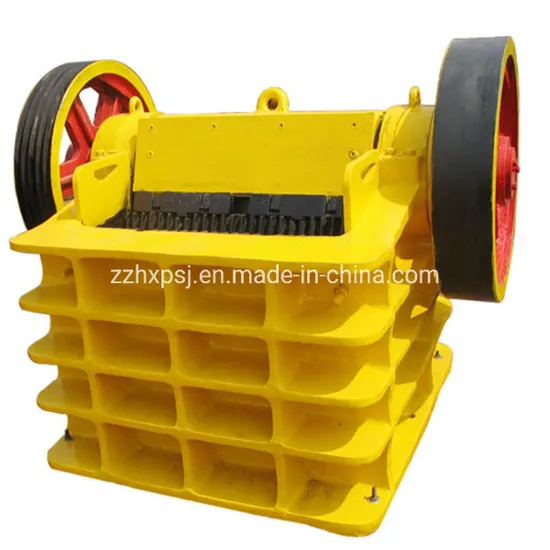

Fine PEX Jaw Crusher
Jaw Crusher is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. Jaw crusher's highest anti-pressure strength of material to be crushed is 320MPa. The jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.
PEX Jaw Crusher Spare Parts

Jaw plate is the main wear parts of jaw crusher: movable jaw plate, fixed jaw plate.

PEX Jaw Crusher Working Principle

The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening.
PEX Jaw Crusher Technical Parameter

Model	Max feed size (mm)	discharge size (mm)	Capacity (T/H)	Power(kw)	Weight (T)
PEX150×750	120	8-25	10-40	15	3.5
PEX250×750	210	12-25	15-50	30	5.5
PEX250×1000	210	12-50	30-95	37	6.37
PEX250×1200	210	12-65	40-100	37	8.75
PEX350×750	300	15-50	20-50	30	6.5
PEX300×1300	250	20-90	45-130	75	11

---
