2core Customized Mutimode Duplex Zipcord Interconnect Gjfj8V/H Dual Core Figure 8 Indoor Optical Fiber Cable Wire

Product Description

Dual-Core double core interconnect ZCC Figure-8 Optical Cable Tight Buffer Fiber

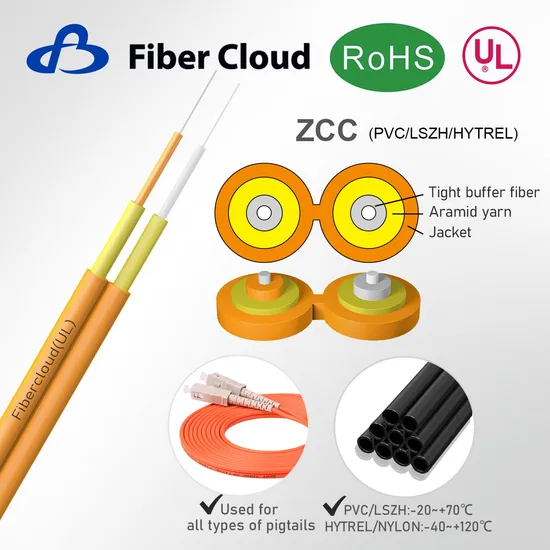

ZCC double-core figure-8 optical cable uses Φ900µm or Φ600µm tight-buffered optical fiber as the optical transmission medium, covered with a layer of aramid as a stress-reinforcement unit, and extruded with a layer of figure-8 polyvinyl chloride (PVC) or low-smoke halogen-free material. (LSZH, low smoke, halogen-free, flame retardant) sheath.
• Uses tight-buffered optical fiber for easy stripping and use
• Tight-buffered optical fiber has good flame retardant properties
• Aramid reinforcement elements give the optical cable excellent tensile properties
• The figure-8 structure sheath is easy to peel off the branches for use
• The outer protective material is corrosion-resistant, waterproof, UV-proof, flame-retardant, and environmentally friendly.
• Duplex fiber optic active link patch cords or pigtails
• Indoor shaft level and forced air level wiring
• Interconnection of instruments and communication equipment
Product Parameters
Technical Characteristics
Storage and use temperature: -40ºC to +120ºC.

Cable Code	Cable Diameter	Cable Weight(Ref)		Tight Biffer Fiber	Tensile Strength	Crush Resistance	Bending Radius
	(mm)	(kg/km)		Diameter	Long/Short Term	Long/Short Term	Dynamic/Static
		PVC Jacket	LSZH Jacket	(µm)	(N)	(N/100mm)	(mm)
ZCC-1.6	(3.4±0.3)X(1.6±0.3)	4.8	5.3	600±50	40/80	100/500	60/30
ZCC-1.9	(4.0±0.3)X(1.9±0.3)	8.0	8.7	900±50	100/200	100/500	60/30
ZCC-2.8	(5.8±0.3)X(2.8±0.3)	11.6	14.8	900±50	100/200	100/500	60/30

Optical properties

Fiber Type	attenuation				Overfilled Bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bending radius
Options	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Typical value	maximum value	Typical value	maximum value
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5

Certifications
Packaging & Shipping
Our Service: 1.Customers solutions in days, not weeks. 2.Warmly services with careful attentions. 3.Can provide your specific inquiry within 24 hours. 4.Save much costs, bring more benefit for customer to expand business. 5.We have been 10 years experience in this field. We are the prefessional supplier that you can trust. FAQ: Q1:How can you guarantee the delivery time? A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. 2. We can regulate the penalty clause in the contract for the late delay. Q2:What's your best price? A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time. Q3:What's your BRAND? A:FIBERCLOUD,YOFC,CORNING... Q4:Can I print our own logo on the product? A:Yes, Please send your logo to us. Q5:Can you provide OEM/ODM service? A:Yes, we can. Please tell us the details of your requirements Q6: How to deal with the faulty? A: First of all, our products are produced under a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, we will conduct strict quality inspections and issue test reports before shipment to ensure the quality of the products. Q7:Why choose us to cooperate? 1. We have first-class production line and strict quality management system. 2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment. 3. We can provide the most competitive price to meet your budget. 4. We also design and innovate the new products based on our rich experience . 5. We have professional team to provide comprehensive one-stop service for you.
6. we know china market very well ,so we can communicate to help you find the products you needed! Hope this would be a good start for our cooperation!

---
