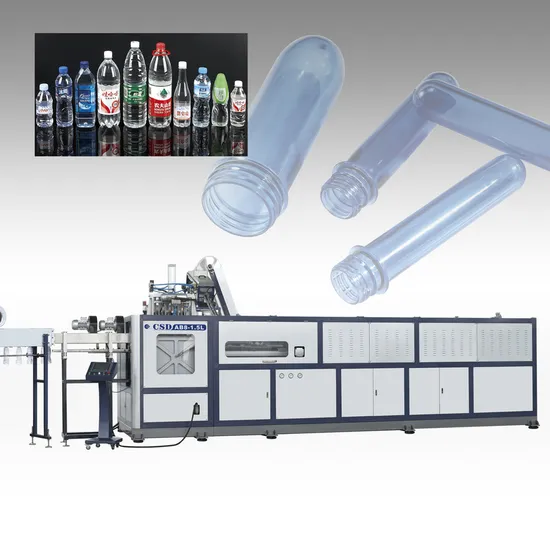

CE Approved With PET two-Stage Automatic Blow Molding Machine (CSD-AB8-1.5L)

Product Description

Blow Molding Machine
The features of Automatic Blowing Molding Machine Model CSD-AB:
1. Adopting imported servo motor ensures smooth performance and exact orientation. The running speed can be adjusted randomly according to the production requirement. With preform ray-inspection device, the clamping system would stop automatically while perform were absent. Blow molding machine, blow moulding machine.
2. Advanced Double-toggle clamping structure makes clamping force stronger. Electro-motion mold adjustment and auto-lubrication device ensure easy operation.
3. Special designed preheater offers wide use range for performs of different neck sizes. Adopting temperature control of layered infrared heating and PLC individual adjustment ensures even heat distriution and makes blow molding easier. When the temperature is over or lower than normal, the preform feeding device will pause automatically. It reduces the waste of raw material.
4. Color LCD screen PLC control panel saves a lot of bottle shaping technical data. All of the parameters can be adjusted successively on the touch screen during operation. No need to stop the machine for adjustment. Blow molding machine, blow moulding machine.
5. With the best design and fine manworkship, the machine is characterized by running smooth, easy operation and maintenance.
6. Auto-locking system protects machine from running under wrong conditions. Any mistake appears in any motion, hints will be shoun on the screen automatically. Meanwhile the machine will alarm and stop. The machine will restart automatically as soon as the problem was settled down. Long-distance-controlled computer supervises all of the procedures. In case the user met problems in production, the manufacturer would be able to provide technical service through long-distance-controlled computer. Blow molding machine, blow moulding machine.
7. With European Community Safety Attestation TUV CE Certificate.

CSD-AB SERIES TWO-STAGE AUTOMATIC LINEAR HIGH-SPEED BLOW MOLDING MACHINE
Item		Unit		CSD-AB8-1.5L
Mold Number				8
Production capacity		L		≤1.5L
Production capacity		Max Volume of Product(500ml)Pcs/h Preform Neck28-30mm		9000Pcs/h(3.2s/cycle)
		Recommended Production Capacity Pcs/h		8600-9000Pcs/h Based on 500ML bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 6700-7200Pcs/h Based on 1500ML bottle, Preform Neck 28-30mm, Weight:42gram, Thickness:3.3mm
Max Diameter of Product		Φ(mm)		95
Neck Size of Product		Φ(mm)		15-32
Useful Area of Mould Plate		mm		1080×400
Max.Mould Thickness		mm		257
Min.Mould Thickness		mm
Mould Stroke		mm		116
Clamping Force		Kn		300
Stretching Stroke		mm		350
Working Pressure		Mpa		0.8-1.0
Blowing Air Pressure		Mpa		2.6-3.0
Measurement of Main Blower		L×W×H(mm)		9000×2000×1900
Power of Preheater		kw		200
		A		295
Actual Power of Preheater(based on 500ml bottle		kw		66
		A		100
Power of Main Blower		kw		8
		A		12
Weight of Main Blower		T		8
Measurement of Conveyer		L×W×H(mm)		3600×2500×3500
Weight of Conveyer		T		0.4
High Pressure Air Compressor Unit	Power	kw		18.5×8
	Pressure	Mpa		3
	Discharging Capa.	m³/min		12
Low Pressure Air Compressor Unit	Power	kw		22
	Pressure	Mpa		1.25
	Discharging Capa.	m³/min		3
Air Tank	Capacity	m³		0.6×2
	Working PRESSURE	Mpa		3
Water Chiller	Cooling Capacity	kcal/hr		49800
	Compressor Motor	HP		15
Air Dryer	Capacity	m³/min		12
	Working PRESSURE	Mpa		3
After Cooler	Capacity	m³/min		12
	Working PRESSURE	Mpa		3
Air Filter Oil Filter Odor Removal Filter	Capacity	m³/min		12
	Working PRESSURE	Mpa		3

---
