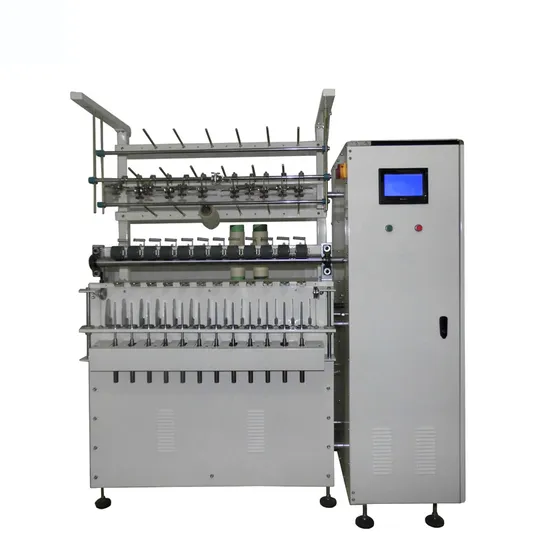

Digital University Laboratory Polyester Yarn Ring Twisting Machine in Cotton Spinning Machine Line

Product Description

Product Description
This machine is suitable for blending and pure spinning of 22~76mm fibers. It is used to twist plied yarn into folded yarns through ring spinning and twisting.In the spinning process, it is used after ring machine or winding machine. After twisting, it can improve the twist and strength of the yarn.
This machine is part of the mini spinning system .With a small footprint, variable frequency control, simple operation and adjustment, suitable for fast spinning tests with small amounts of raw materials. It is mainly used in schools, research institutions, and research and development centers.

Product Parameters

Spindle number	6 or 12
Spindle length	205mm
Spindle speed	5000--20000rpm
Spindle gauge	42mm
Roller diameter	25mm
Ring diameter	38/42/45mm
Output capacity	1-2kgs/h
Max output speed	42m/min
Twist range	1200--2000twist/m
Dimension	1750*1250*1750mm
Power	1.2 KW 220 or 380V or customized
Control mode	Touch screen & PLC Servo motor driving

Features
1.It adopts touch screen and PLC control.
2.Imported frequency converter of high efficiency.
3.Mini type machine, save researching cost and easy to operate and maintain.
4.Can be used for cotton fiber or wool fiber (alternative) with different parts.

Detailed Photos

Our Advantages
Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products.
Based on the Digital Textile Technology Research Institute of Qingdao University, we have developed the whole sample spinning production line and lab weaving line. It is used for teaching research and new product development in textile colleges and scientific research institutions


Company Profile
Packaging & Shipping
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered. FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

.

---
