Accurl Da41s Control System CNC Press Brake Bending Machine

Product Description

Accurl Da41s Control System CNC Press Brake Bending Machine
Product Description
ACCURL DA41S NC PRESS BRAKE ACCURL® Easy Bend B Series Hydraulic NC Press Brake Machine is our most popular model by volume and a true workhorse. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage.Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds. Details Images

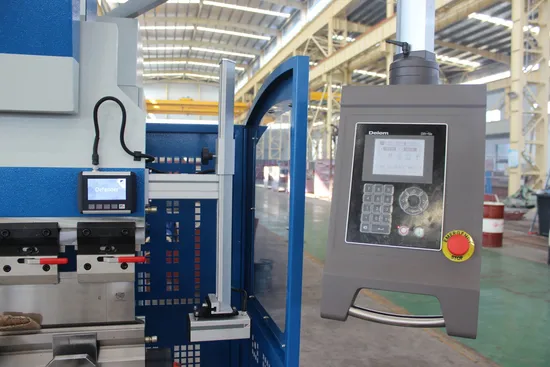

DELEM DA41s CNC CONTROL UNIT ACCURL®has chosen the very powerful new generation DELEM DA41s offers an higher level of efficiency in programming and control of press brakes. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.The DA-41s control provides a complete solution for conventional press brake applications for 2 axes.Offering a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on the state of the art electronics. DELEM DA41s NC System Features:
•Bright LCD display 320 x 240
•Angle & Tool programming
•CNC Back gauge control
•Developed length calculation
•Up to 25 bends per program
•Servo, frequency inverter and AC control
•The basic machine control functions are Y ,X-axis. HYDRAULIC SYSTEM Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic system
can effectively alleviate problems caused by leakag of hydraulic fluid. BGA-1 CNC BACKGAUGE ACCURL® press brake are provided are equipped with BGA-1 CNC backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning. •X-Axis with HIWIN linear guide and Ball Screw.
•Manual Z1,Z2-axis with linear guide .
•Driven by DELTA Servo Motors and drives
•Less noise, greater durability and greater precision. ACCURL QUICK CLAMP SYSTEM • safe and fast tool change • substantial improvement in time consumption and related costs • Secure against tool falling down •
Available in manual, pneumatic and hydraulic models. • Mounting: Simply from the bottom into the housing, tighten-DONE! • Easy to
mount on your press brake.Modify cation of the press brake is not necessary. DSP LASER SAFETY SYSTEM ACCURL® Press Brake Standard with DSP visible laser protection compliant to EN12622 regulation. The beam protects the press brake
operator from the danger of being crushed between upper & lower tool. •The most advanced laser systems
•Box-shaped part bending feature
•Innovative tooling grid guarding pattern
•Completely foot peddle controlled operation
•Auto-blanking for automatic box and side wall detection
•Type 4 patented process control
•"Safe Release" supports are unhooked without damages in case of collision Technical Specification

Name	Unit	PRESS BRAKE AC‐MB7-100Tx3200
Bending force	ton	100
Bending length	mm	3200
Distance between columns	mm	2550
Stroke((Y-axis) NC‐controlled stroke axes)	mm	120
Daylight	mm	380
Throat Depth	mm	320
Bed Height	mm	800
Bed Cap Width	mm	80
Y-axis advance speed	mm / sec	120
Y-axis working speed	mm / sec	10
Y-axis return speed	mm / sec	100
X-axis BackGauge Speed	mm / sec	150
X-axis BackGauge Travel	mm	600
X-axis BackGauge Precision	mm	0.01
Gaugeable with 3rd Position	mm	850
Workpiece straightness	mm	0.6 /m
Bending angle accuracy	(′)	<±50<>
Sliding Front Arms	pcs	2
Backgauge Finger Block	pcs	3
Motor Power	kw	7.5
Oil Tank Capacity	lt	260
Crowning System	‐	/
Length	mm	3500
Width	mm	1650
Height	mm	2350
Weight	kg	7350
More types press brake, please contact us, will give you best solution
