High Performance Heavy Duty Lathe Machine CW62103C/2000

US$99.00-99,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
CW62103C/2000
Tool Holder
4 station tools
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
max. swing diameter
1030mm
max. workpiece length
2000mm
spindle bore diameter
105mm or 130mm
Transport Package
Wooden Pallet
Specification
CW62103C/2000
Trademark
HAVEN
Origin
China
HS Code
846694
Production Capacity
50 Units Per Month

Product Description

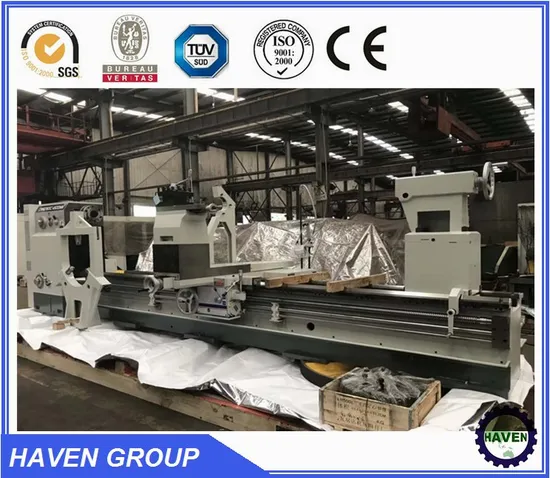

Mechanical Horizontal Lathe Machine CW62103C/2000
Main Features:
This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market's demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including: CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.
Main Specification:
Item Unit Spec./Model
CW61103C
CW62103C		 CW61123C
CW62123C		 CW61143C
CW62143C		 CW61163C
CW62163C		 CW61183C
CW62183C
Swing in bed mm 1030 1230 1430 1630 1830
Swing in gap mm 1200 1400 1600 1800 2000
Swing over cross slide mm 700 900 1100 1240 1440
Distance between centers mm 1500,2000,3000,4500,6000
Length in gap from face plate mm 380
Spindle nose C11 or D11
Spindle bore mm 105,130
Spindle speed rpm/steps 10-800/18 7-576/18 6-480/18
Cross slide travel mm 615 715 815 915
Top rest travel mm 225 300
Rapid traverse mm/min Z:3200, X:1400
Quill diameter mm 120
Quill travel mm 270
Quill taper MT6
Bed width mm 610
Metric threads mm/kinds 1-240/53
Inch threads tpi/kinds 30-2/31
Module threads mm/kinds 0.25-60/42
Diametral pitch threads tpi/kinds 60-0.5/47
longitudinal feeds mm/r 0.07-16.72
Main motor power kw 11
