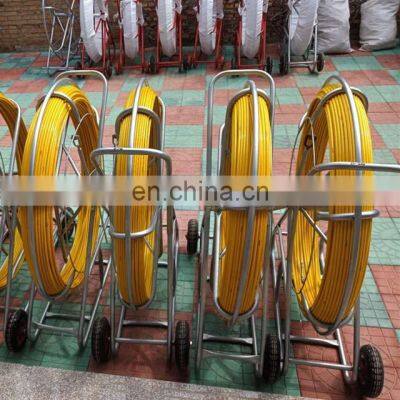

yellow color rods 10mm fiberglass cable hauling duct rodders

Product Description

Product Description
yellow color rods 10mm fiberglass cable hauling duct rodders
Geet Rigidity Fiberglass Push Pull, FRP duct rod, Cable duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and hancart, it features easy to move and operate. The fiberglass duct rodder will be equipped with different size of reels in accordance with the length of rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.

Product name	Fiberglass Duct Rodders
Material	Epoxy fiber glass(inner core) and imported ABS(out layer)
Parameter Frame Dimension 1300mm*450mm*1330mm 1200mm*420mm*1220mm 980mm*350mm*1000m 680mm*240mm*700mm 420mm*180mm*400mm	Reinforcement	E-Glass Fiber
	Glass content of inner part	E-Glass Fiber
	Density	>1.9g/m3
	Diameter tolerance	+-0.10mm
	Work situation temperature	-40℃~+80℃
	Mini pulling strength	4000N+-5%
	Tensile modulus	>3000MPa
	Consistency of rod	150g+-5%
	Flexural modulus	>3000MPa
	Elongation at break	2.5 -3%

The Fiberglass Rod
The core of the rod is made by high strength continuous glass fiber filaments impregnated in to a liquefied resin. The fibers are drawn in to a heated die where the resin matrix is cured, bonding the fibers together and allowing mechanical loads to be transmitted through the matrix and distributed amongst the fibers.
The Frame
The material of the frame is Strong Galvanized Steel. Small diameter frame without wheels, it is small and lighter, can be fit in any car. The big diameter frame with durable wheels, which is more stable and move convenient & quick.
Feature
* Brand New and high quality
* Ideal tool for pulling guide rope in the pipeline
* Made of fiberglass material, non-conductive,rust and corrosion resistance,superior pulling strength
* Solid tubular steel reel with adjustable hand brake
* Hand-held bracket, easy carry , lightweight and portable
* Welded with high-quality steel, sturdy and durable, with good compression resistance capacity
* Perfect for using in telecom, electrical, wall and floor conduit, walker duct and utility installation
