T Bar T Grid Roll Forming Machine Line

US$38,000.00
1-2 Sets
US$35,500.00
3-4 Sets
US$30,000.00
5+ Sets

Basic Info.

Model NO.
FMS-T bar roll forming machine
Automatic Grade
Automatic
Power Source
Electric
Screw Design
No
Certification
CE, ISO
Condition
New
Customized
Customized
Application
House Building
Thickness
0.4-0.8 mm
Roller Station
15
Roller Materials
#45
Shaft Diameter
75 mm
Driving Mode
1 Inch Chain
Main Motor Power
4.5 Kw
Transport Package
Naked with Plastic Film.
Specification
5500*700*700mm
Trademark
FMS
Origin
China
HS Code
84552210
Production Capacity
20 Set Per Month

Product Description

Product Description

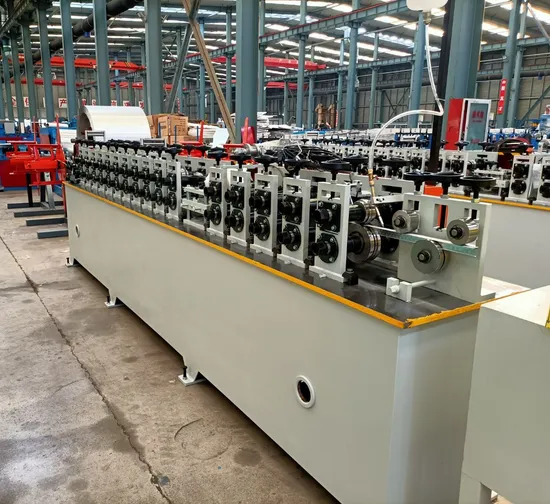

Ceiling T Bar Roll Forming Machine Line
The whole line composed with main T machine, cross T machine and angle machine.

Product Parameters

Material of Shaft 40 mm 45#steel forged
Material Thickness 0.4-0.6mm
Working Speed 8-15m/min
Main Motor Power 4 KW
Electrical Hydraulic Station Power 5.5 KW
Hydraulic Station Pressure 12.0 Mpa
Roller Station 16 + 16 + 10 Raws

Detailed Photos
