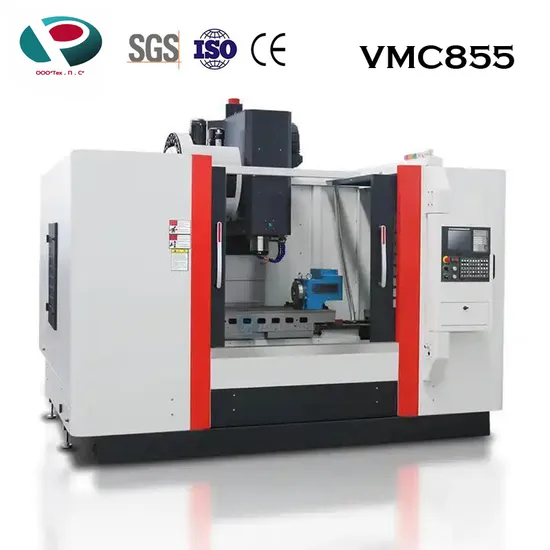

Vertical Machine Center CNC Milling Machine Vmc855

Product Description

Product Description
Application VMC is suitable for the mechanical procedding and mold making.
And it can adapt to the processing requirment from rough machining to finish machining.
It can also finish many working procedures like milling,drilling,tapping,boring etc.

Features
Hot Sale VNC855
1.High quality resin sand 2.Tsiwan spindle 3.Taiwan ball screw and locking nut 4.Taiwan pressure cylinder 5.Japan NSK bearing 6.Germany R+W coupling 7.Automatic lubrication system 8.Chip conveyor at optional
Technical Parameter:

Specification	Units	VMC855
Table size	mm	1000*550
the maximum load capacity	kg	500
Distance between spindle center and column	mm	590
Distance between spindle end face and worktable surface	mm	120-670
spindle speed	r/min	8000
spindle taper	type	BT40
Spindle motor power	kw	7.5/11
Max.tool length	mm	300
Maximum tool weight	kg	8
Electric capacity	KVA	15
X/Y/Z Max. feed speed	mm/min	10000
X/Y/Z Max. Rapid traverse	m/min	32/32/30
T slot	mm	5-18*90
Machine dimensions(L*W*H)	mm	2600*2380*2700
Weight	kg	5000

Details Picture:
Company Profile:
Packing and Dclivery
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
