Twin Scissor Lift Table Double Scissor with Safety Frame

Product Description

Product Description

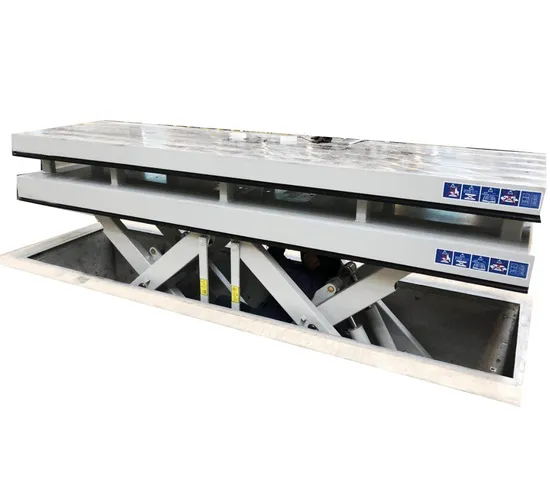

Twin scissor lift is designed with two scissors to lift one longer platform at the same time
achieve platform length and load capacity. This type of lift table can also lift a longer platform with multiple sets of scissors and the lifting
is required synchronously. Twin scissor lift is
mainly used to deal with ultra-longer or heavier
duty goods, such as automotive manufacture, wood machining, packing machinery, metallurgical industry, High-speed railway etc...
Product Parameters

Model No.	M3-040100-D4/2L	Capacity	4000kg
Platform size	3650x1000mm	Base Frame	3650x1000mm
Min. Height	670mm	Lifting Height	1000mm
Model Type	stationary	Lift Time	40s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011
