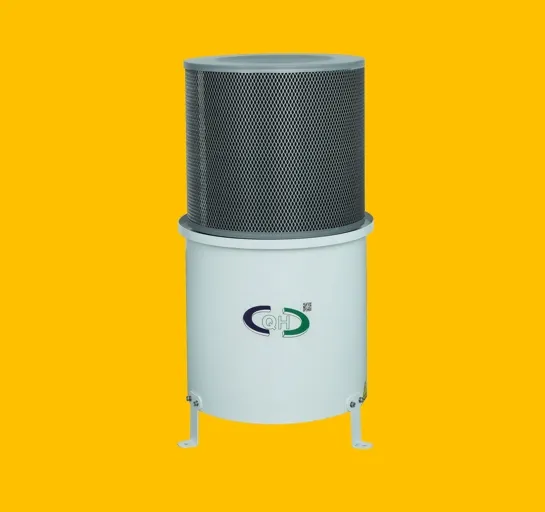

2025 New Upgrade Oil Mist Collector/Purifier

Product Description

Name: Centrifugal oil - mist collector. Features: Large air volume and low energy consumption. Equipped with a high - efficiency fan, it can achieve a large air volume while consuming low energy. Small size and light weight. Using a centrifugal structure design, it saves installation space and is convenient to install. A combination of centrifugal and filter. The filter cotton further improves the filtration accuracy and efficiency. Different post - filters can be selected according to requirements to achieve a higher filtration effect. Application range: Machining centers, CNC lathes, milling machines, drilling and tapping machines, walking machines, grinders, cleaning machines, etc. Working principle: The oil - mist - containing air is sucked into the collector and filtered in three steps. Firstly, through centrifugal separation, the high - speed rotating airflow makes the oil - mist particles adhere to the inner wall of the machine due to centrifugal force for separation. Secondly, it is filtered through multiple layers of filter cotton. Finally, it is filtered again through a high - efficiency filter. Different high - efficiency filters can be selected according to different working conditions to effectively purify the oil mist. FAQ:
1. In which fields is this product applicable?
Answer: It is mainly applied to the factory working environments of CNC machining centers, CNC machine tools, and lathes.
2. In which environments is this product applicable?
Answer: The product is applicable to the air - environments polluted by oil mist generated from mechanical processing in factories and workshops. It is only suitable for filtering oil - mist gases.
3. How about the filtering effect of this product?
Answer: For the cooling oil used in general machining centers, it can achieve a filtering effect of 99%.
4. How is the quality of this product? Does it need frequent maintenance?
Answer: It is a very mature product with a mature production line. Judging from the after - sales data, there are currently no customer complaints due to the product's own quality problems.
5. What is the service life of the filtering consumables of this product?
Answer: The service life is approximately 3000 hours. For the general usage conditions and environments of factories, the valid period is about 1 year. Specifically, it still depends on the actual usage environment.

---
