Product Details
Product Description
Product Description

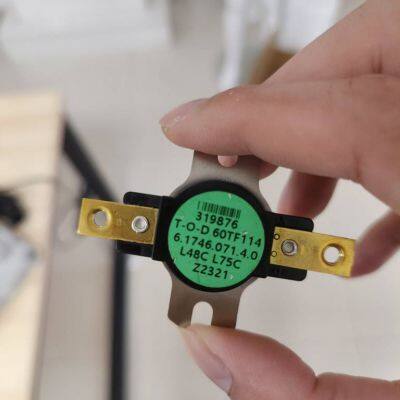

T-O-D® Protective Control/Bimetalic Single Operation Device (SOD) 60F and 61F line of 3/4” (19mm) bimetal disc temperature limit controls from THERM-O-DISC offer reliable “one shot” operation at temperatures up to 350°F (177°C). Utilizing the same bimetal temperature sensing principle as the 60T automatic reset control, the 60F and 61F permit a uniform approach to the application of temperature limits. Rated for electrical loads up to 25 amps at 600VAC (60F) and 49 amps at 600VAC (61F), these temperature limit controls provide unsurpassed over-temperature protection in a non-resettable design.
Features:
Single operation for reliable, non-resettable, temperature limiting.
Special Kapton insulator for application voltages up to 600VAC.
Snap-action bimetal disc for high-speed contact separation.
The 60F and 61F are single pole, single throw (SPST) switches designed to open their electrical contacts on temperature rise. Once the switch has operated, the unique bimetal “fuse” disc prevents reset of the contacts to their original state at temperatures above -31°F (-35°C). The 60F reflects the same 25 Amp contact rating found in the 60T automatic reset series while the 61F provides a higher current-carrying construction for 49 Amp capability. The Therm-O-Disc 60F and 61F are typically utilized as primary or secondary temperature limits in electric heating equipment.
Terminal Configurations Standard terminations for the 60F are .250” x .032” (6.35mm x .81mm) tin-plated brass blades. The 61F is provided with a 10-32 screw and double .250” x .032” (6.35mm x .81mm) blade combination. Optional configurations, which include fork, screw and double blade terminations, are available at additional cost.
Agency Recognition:
60F
UL (File MH5304)------ 600VAC 25A (1 cycles) / 240VAC 25A (1 cycles)
CSA (File LR10281C)------ 600VAC 25A (1 cycles)
VDE (File 135009)------ 250VAC 45A (1 cycles) / 24VDC 5A (1 cycles)
61F
UL (File MH5304)------ 600VAC 48A (1 cycles) / 240VAC 49A (1 cycles)
Part Number:
T-O-D 60F04
T-O-D 60F14
T-O-D 60F24
T-O-D 60F34
T-O-D 61F04
T-O-D 61F14
T-O-D 61F24
T-O-D 61F34
THERMODISC® Protective Control/Bimetalic Single Operation Device (SOD) Fuse Thermostat 36F Series of 1/2”bimetal disc temperature limit controls offer reliable “one shot” operation at temperatures up to 428°F (220°C). The 36F fuse thermostat is a single operation version of the 36T. Once the electrical contacts have opened, they will not reclose unless the ambient temperature drops below +32°F (0°C), or below -31°F (-35°C).
The 36F is available with any of the terminals, mounting configurations or switch cases that are available on the 36T automatic reset version.
Mounting Configurations： No Mounting Bracket Surface Mount Bracket Airstream Mount M4*0.7mm Stud Mount
Agency Recognition:
UL (File E19279)------ 120VAC 15A (1 cycles) / 240VAC 10A (1 cycles)
VDE License 118631------ 250VAC 16A (1 cycles) / 400VAC 10A (1 cycles) / 400VAC 10A (1 cycles)
Part Numbers:
36F04 36F14 36F24 36F34 36F06 36F16 36F26 36F36 36FX04 36FX14 36FX24 36FX34 36FX06 36FX16 36FX26 36FX36 36FXE04 36FXE14 36FXE24 36FXE34 36FXE06 36FXE16 36FXE26 36FXE36 36FXH04 36FXH14 36FXH24 36FXH34 36FXH06 36FXH16 36FXH26 36FXH36 36FXHE04 36FXHE14 36FXHE24 36FXHE34 36FXHE06 36FXHE16 36FXHE26 36FXHE36 36FE04 36FE14 36FE24 36FE34 36FE06 36FE16 36FE26 36FE36 36FHE04 36FHE14 36FHE24 36FHE34 36FHE06 36FHE16 36FHE26 36FHE36 36FM04 36FM14 36FM24 36FM34 36FM06 36FM16 36FM26 36FM36 36FMH04 36FMH14 36FMH24 36FMH34 36FMH06 36FMH16 36FMH26 36FMH36 36FMHE04 36FMHE14 36FMHE24 36FMHE34 36FMHE06 36FMHE16 36FMHE26 36FMHE36
Fox Example: T-O-D 36FX24 20268 L290F ; T-O-D 36FMH06 560970 L115C; T-O-D 36FME04 20205 L70C
>>
