Product Details
Product Description
Product Description

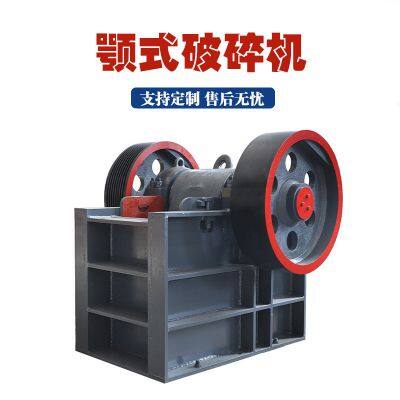

E-breaking machine, also known as jaw crusher, is a kind of crushing equipment composed of moving jaw and static jaw, which is mainly used for coarse and medium crushing various ores and rocks.
Structure and working principle:
The jaw breaking machine is mainly composed of transmission system, frame, moving jaw plate, fixed jaw plate, bearing, eccentric shaft and other components.
The working principle is that the motor drives the eccentric shaft to rotate, and the connecting rod on the eccentric shaft pushes the moving jaw plate to the fixed jaw plate to move repeatedly, so as to squeeze the material to achieve the crushing effect.
Performance characteristics:
The jaw breaking machine has the characteristics of large crushing ratio, uniform material particle size, simple adjustment, convenient material receiving, good sealing, less dust and so on.
It is reasonably designed, easy to maintain, simple to operate and use, and runs smoothly, with small vibration and low noise.
Category:
According to the different swing modes of the moving jaw plate, the jaw crusher can be divided into simple swing type (simple swing jaw crusher) and complex swing type (compound swing jaw crusher).
The simple swing-type E-breaking mobile jaw hangs on the spindle and can swing left and right; the compound swing type moves the jaw for complex swing.
Field of application:
E-breaking machine is widely used in a variety of industries such as mines, building materials, highways, railways, water conservancy and chemical industries, and is used to crush various materials with a compressive strength of no more than 320MPa.
History and Development:
The E-breaking machine was invented by Black of the United States in 1858, and is one of the longest and most robust crushing equipment.
With the continuous development of technology, the manufacturing level and performance of the E-breaking machine are also constantly improving, meeting the needs of more industries.
In summary, as an important crushing equipment, the E-breaking machine plays an important role in many fields such as mines and building materials, and has a broad application prospect.
>>
