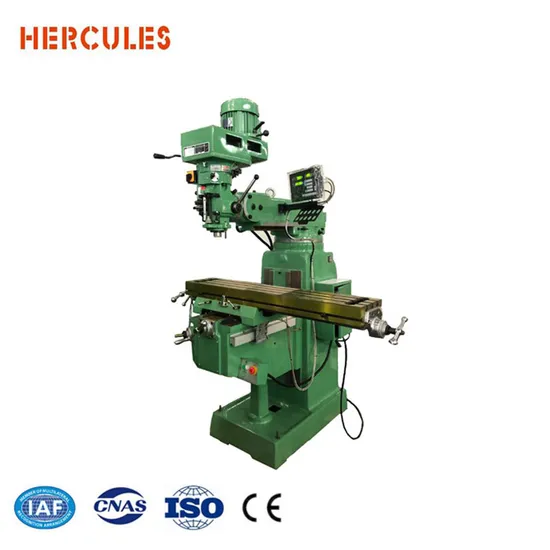

Custom Parts M3E Vertical Turret Milling Machine for India Market

Product Description

Turret Vertical Milling Machine, Economic series
Performence Features:
1. M3E Turret Milling Machine has reasonable construction, superior machining functions such as drilling, boring, milling of plane, inclined plane and slot,
and such functions available by use of the corresponding attachments as milling of helix slot,
round surface, rack, gear and spline.
2. Rectangular guide way on Y-axis is featured a good rigidity and stability,
the guide way on Radial Milling Machine saddle is lined with TF wearable material
3. High speed milling head from Taiwan
4. Harden the slide way and table surface
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Plastic Cover
Optional parts:
3-axis DRO
X-axis ALSGS power feed
Y-axis ALSGS power feed
Z-axis ALSGS power feed
Air draw bar
Variable speed milling head
6" Machine vice
Separately operate panel box
Specification:

Model	M3(M3E)
	Economic Series
Table size(L*W)(mm)	1270x254
Max.load of table (kg)	300
X axis(mm)	900 810 with power feed
Y axis(mm)	400
Z axis (mm)	400
Work table T slot (No.-size*pitch) (mm)	3-15.88x63
Distance between spindle and table(mm)	45-450
Ram travel (mm)	380
Travel of spindle quill (mm)	120
Auto crossward feed(mm/rev)	0.04,0.08,0.15
Spindle speed(rpm)	80-5440rpm 16steps
Spindle hole taper	R8 / NT30 (optional )
Main Motor	3HP
Tilt angle for milling head	left and right±90º forward and backward±45º
Guiding tracks(X.Y.Z)	△△△
Dimension(L*W*H)(mm)	1750x1500x2100
Milling head	Round step milling head
Weight (kg)	1100

Machine Images & Production Processes

---
