Vh-20 Dry Powder Mixer Stainless Steel Laboratory Special Single Arm Small Mixer Machine

Product Description

Product Description

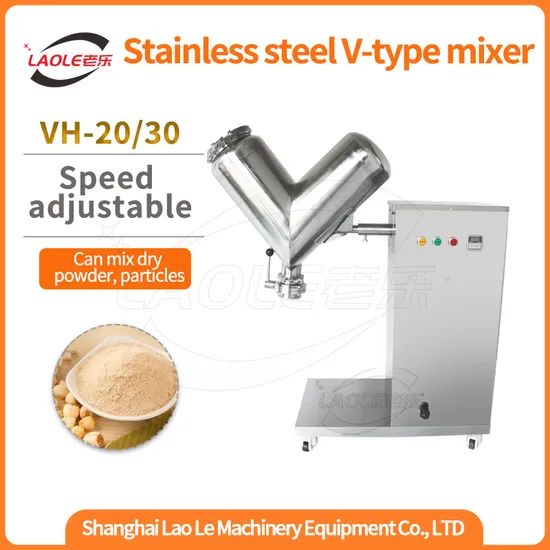

Product Description Features of VH High Efficient Mixer (V Shape Mixer)Our high efficient mixer (V shape mixer) adopts V shape unsymmetrical charging barrels to mix the materials. With a reasonable structure and easily operated, this machine can mix materials without any corner untouched and it is highly efficient. The charging barrels are made up of stainless materials with smooth walls inside which are easy to clean. It is an ideal facility for the enterprises.1) Materials: carbon steel, stainless steel2) Batch capacity: 2L--5000L3) Unique structure able to mix efficiently, with no dead corners4) Easy to feed, discharge, clean and replace materials

Technique Parameter:
Parameters of VH High Efficient Mixer (V Shape Mixer):

Model	VH-2	VH-5	VH-8	VH-20	VH-30	VH-30
Barrel capacity(L)	2L	5L	8L	20L	30L	30L
Feed volume (L)	1L	3L	4L	10L	15L	15L
Feed weight (kg)	500-600g	2kg	5kg	8kg	10KG-20KG	10KG-20KG
Agitation speed (r/min)	24r/min	25 rpm	35r/min	20r/min	20r/min	20r/min
Motor power (KW)	0.25KW	0.55KW	0.55KW	0.75KW	0.75KW	0.75KW
Overall size(mm)	400*330*420	680*275*475	750×370×550	800×600×1000	800×600×1000	800×600×1000
Weight (KG)	19	60	60	120	120	120

Model	VH-50	VH-100	VH-200	VH-300	VH-500	VH-1000
Barrel capacity(L)	50L	100L	200L	300L	500L	1000L
Feed volume (L)	20L	30L	80L	100L	200L	400L
Feed weight (kg)	20--25(KG)	30kg	80kg	120kg	200kg	400kg
Agitation speed (r/min)	24r/min	20r/min	20r/min	20r/min	20r/min	20r/min
Motor power (KW)	0.75KW	1.5KW	1.1KW	1.5KW	2.2KW	3KW
Overall size(mm)	1100*600*1150	2000X700X1450	2300×800×1700	2350*800*1800	2700*1000*2400	3000*900*2400
Weight (KG)	150	180	350	800	900	1000

Model	VH-1500	VH-2000	VH-3000	VH-4000	VH-5000
Barrel capacity(L)	1500L	2000L	3000L	4000L	5000L
Feed volume (L)	800L	1000L	1300L	1800L	2000L
Feed weight (kg)	600kg	800kg	1000kg	1200kg	2000kg
Agitation speed (r/min)	20r/min	20r/min	20r/min	20r/min	20r/min
Motor power (KW)	4KW	5.5KW	7.5KW	11KW	11KW
Overall size(mm)	3400*1200*2900	3800*1200*2900	4100*1800*3100	4300*2000*3600	4800*2200*3800
Weight (KG)	1200	1400	1800	2200	4000

Recommended products
Recommended Products

Detailed Photos
Our Advantages

Our factory
Our Factory
Shanghai Laole Machinery Equipment Co., Ltd. Main sales:
1. Customized die for single punch tablet press, rotary tablet press, flower basket tablet press and tablet press.
2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine) Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler, capping machine, dryer, labeling machine)
Tablet press supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer) Granulator (wet process rocking granulator, dry granulator, rotary granulator) Sugar Coating Machine, Coating Machine, Pill Making Machine, Pulverizer, Tablet Counting Machine, Electronic Counting Machine Decoction machine, dryer, oven, drying equipment, vacuum feeder, powder removal sieve equipment Tablet press with vacuum cleaner, slicer, etc. We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we will serve you wholeheartedly.
FAQ
FAQ
Q1: Are you a factory or a trading company?A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Yes, we are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q4: How could I get the spares on machines?
A: Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: What are the payment terms?
A: We usually accept T / T payment, credit insurance order and TT
Q6 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q7: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

---
