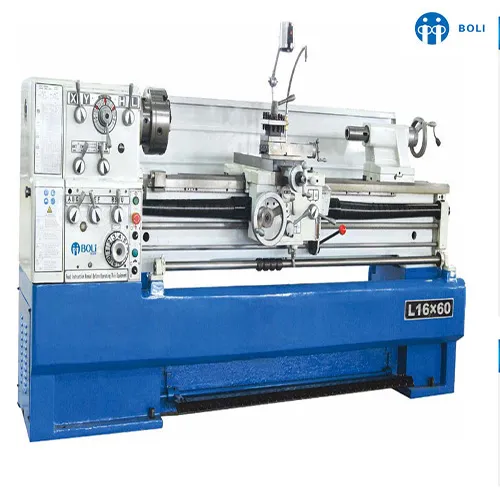

High Precision Metal Bench Lathe Turning Center Universal Horizontal Lathe

Product Description

L16"/18"/20"/22"/ Series Precision Lathe Product Description
· Precision ground and supersonic frequency hardened bedway is designed in double wall structure,giving super rigidity
· The spindle system is high in rigidity and accuracy
· The design of the main drive is optimized and the gears in the headstock are precision ground.The noise of the machine is low
· The machine can turn about 200 kinds of metric,whitworth,module and D.P.Threads
· An automatic stop device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and eliable
· A pedal braking device provide quick and effective stop while operating
Standard Accessories
3 jaw chuck and adapter
4 jaw chuck and adapter
Face plate/steady rest
Follow rest/oil gun
Thread chasing dial
Operation manual
One set of wrenches
2 dead centers/sleeve
Foot brake/coolant pump
Halogen lamp
Splash guard
One piece iron casting stand
Micro carriage stop
Optional Accessories
Quick change tool post
Driving plate
Taper turning attachment
Digital readout
Nr 12 standard for Brazil
Product Parameters

Model No.	Unit	L16"×40"/60"/80"	L18"×40"/60"/80"	L20"×60"/80"/120"	L22"×60"/80"/120"
swing over bed	mm	410(16.14")	460(18.11")	510(20.08")	560(22.05")
swing in gap	mm	640(25.20")	690(27.17")	300(11.81")	350(13.78")
length of gap	mm	165(6.50")		200(7.87")
distance between centers	mm	1000/1500/2000(39.37"/59.06"/78.74")		1500/2000/3000(59.06"/78.74"118.11")
width of bed	mm	300(11.81")		350(13.78")
spindle nose		D1-6		D1-8
spindle bore	mm	58(2.28")		80(3.15")
taper of spindle bore		No.6 Morse		No.7Morse
range of spindle speed	r/min	12 changes, 25-2000		12changes25-1600
max.travel of top slide	mm	128(5.04")		130(5.12")
max.travel of cross slide	mm	285(11.22")		326(12.83")
max.section of tool	mm	25×25(0.98"×0.98")
pitch thread of leadscrew	mm	6 or 4T.P.I.
longitudinal feeds range	mm/r	42 kinds,0.031-1.7(0.0011"-0.0633")		35 kinds, 0.059-1.646(0.0022"-0.0612")
cross feeds range	mm/r	42 kinds, 0.014-0.784(0.00033"-0.01837")		35 kinds, 0.020-0.573(0.00048"-0.01354")
metric threads range	mm	41 kinds, 0.1-14(0.0039"-0.55")		47 kinds, 0.2-14(0.01"-0.55")
Inch threads range		60 kinds, 2-112T.P.I.
diametrical pitches range		50 kinds, 4-112DP
module pitches range		34 kinds, 0.1-7MP
dia. of tailstock sleeve	mm 60(2.36") 75(2.95")	60(2.36")		75(2.95")
travel of tailstock sleeve	mm	128(5.04")		180(7.09")
taper of tailstock sleeve		No.4 Morse		No.5Morse
power of main motor	kW	5.5(7.5HP) 3PH		7.5(10HP) 3PH
power of coolant pump	kW	0.1(1/8HP) 3PH		0.1(1/8HP) 3PH
overall dimension(L×W×H)	cm	220/280/330×108×134	220/280/330×108×134	290/340/440×112×143	290/340/440×112×143
packing size(L×W×H)	cm	225/282/340×113×156	225/282/340×113×156	292/340/440×113×182	292/340/440×113×182
N.W.	kg	1670/1920/2070	1720/1970/2120	2335/2685/3185	2370/2720/3220
G.W.	kg	1980/2265/2450	2045/2330/2515	2700/3070/3570	2740/3110/3610

Detailed Photos
FAQ
Q1: What is a lathe machine?
A1: A lathe machine is a tool used for shaping and machining workpieces by rotating them against a cutting tool.Q2: What are the common applications of a lathe machine?A2: Lathe machines are commonly used for turning, drilling, and cutting operations in metalworking and woodworking industries.Q3: What are the main components of a lathe machine?A3: The main components of a lathe machine include the bed, headstock, tailstock, carriage, and spindle.Q4: How does a lathe machine work?A4: The workpiece is mounted on the spindle, which rotates at a high speed. The cutting tool is then brought into contact with the workpiece, allowing for the desired shaping or machining operation.Q5: What are the advantages of using a lathe machine?A5: Lathe machines offer high precision, versatility, and the ability to work on various shapes and sizes of workpieces. They also provide efficient and accurate machining results.Q6: Are lathe machines suitable for both small and large-scale production?A6: Yes, lathe machines can be used for both small-scale and large-scale production, depending on their size and capabilities.Q7: What safety precautions should be taken while operating a lathe machine?A7: Operators should wear appropriate protective gear, ensure proper machine setup, use sharp and properly secured tools, and follow safety guidelines for handling rotating parts.Q8: How can a lathe machine be maintained for optimal performance?A8: Regular cleaning, lubrication, and inspection of the machine's components are essential for maintaining its performance. Additionally, replacing worn-out parts and following manufacturer's maintenance recommendations can help prolong the machine's lifespan.

---
