Fully Automatic Toilet Tissue Paper Roll Kitchen Towel Making Machine Production Line

Product Description

Product Description

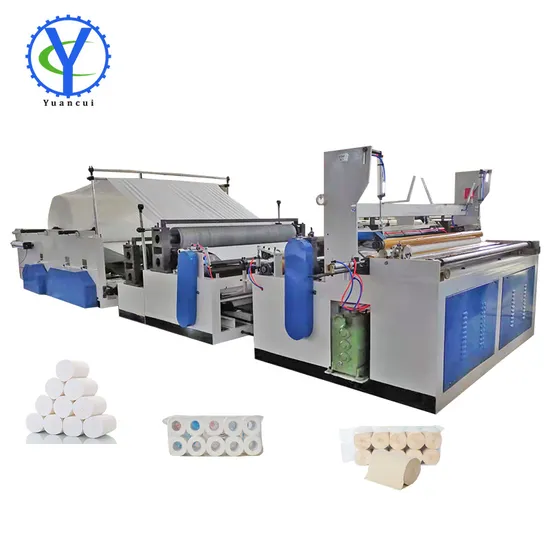

New Design Automatic Toilet Paper Roll Embossed Rewinding Machine Small Toilet Tissue Paper Making Machine This machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding. Product Parameters

Machine Model	1575/1880//2400/3000/S3000
Paper Width(mm)	Max 1750mm/2200mm/2400mm/3000mm/3050mm
Paper Diameter(mm)	φ1150mm(Please Specify)
Paper Core Inner Diameter	φ76mm(Please Specify)
Product Diameter	φ50mm-180mm
Paper Backing	1-4layer,general chain feed or continuously variable transmission feed paper
Punch	2-4 Knife,Spiral Cutter Line
Hole Pitch	Positioning of Belt and Chain Wheel
Control System	PLC Control,Variable Frequency Speed Control,Touch Screen Operation
Product Range	Core Paper,Non Core Roll Paper
Drop Tube	Manual,Automatic(Optional)
Non core roll paper	automtic core pulling
Production Speed	80-200m/min

Working Principle
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Related Products
Band saw paper-cutter (toilet tissue cutting saw) It is used with toilet paper rewinding machine, to cut into needed paper roll product in accordance with required length and width. This machine is equipped with automatic sharpening and traveling table device, maintaining stable operation performance and high production efficiency.This machine uses linear bearings for track sliding technology, to make product more smooth, more lab or-saving, while increasing the production of the new device to operate more secure. Automatic Band saw Cutting Machine 1. The use of LCD touch screen on the system of user-friendly operation,computer debugging,set simple.
2. Cutting process is very safe,don't need to use,the operator's safety index is improved.
3. This machine is suitable for roll paper,tissue paper cutting,the cutting length can be arbitrarily.
4. As long as the set number of cutting and cutting length in the text,can be shown according to cutting,paper cutting effect of partial distortion is not raising no waste.
5. The whole set of advanced,stable performance ,international materials , durable. Roll paper packaging machine
paper roll packaging machine is suitable for packing regular materials such as cylinder paper. The whole machine consists of an automatic material sorting part, a packaging machine host part, a side ironing part and a control part. Detailed Photos
Company Profile
FAQ

1. How about the quality? Generally, we guarantee our products for 1 year, but our customers have already purchased and used our machines for many years without problem.
2. How do you pack machine?Our machines will be packed into PE film packing or wood case. (We will process the wood case and make sure it reaches export standard)
3. How long is your guarantee?One year (Calculated from the equipment arrives at the customer's side.). If there is any problem within guarantee period (excluding caused by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happen.
4.How to install and maintain the machine? Firstly, we will provide the installation guild with the machine for your reference. Secondly, our company is responsible fortraining production workers for you, ensuring that the workers will be independent operation.
5.Can your company do customized machine? Yes we can. We have 5 experienced engineers to support customized designs.

---
