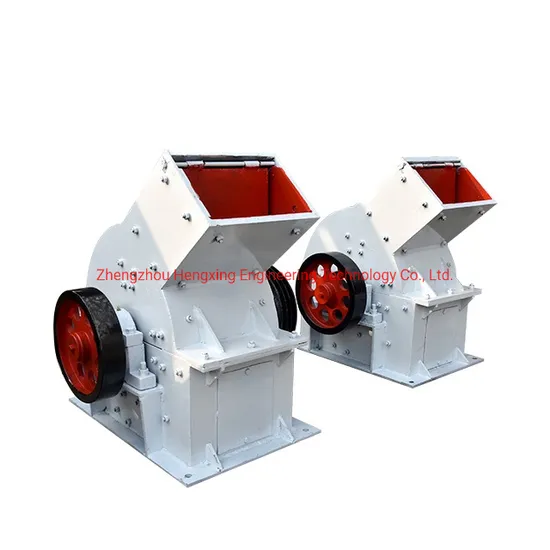

Small PC 600* 400 Hammer Crusher for Gold Ore, Stone, Rock

Product Description

Small PC 600* 400 hammer crusher for gold ore ,stone ,rock
Hammer crusher application:
Hammer crusher is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement, chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according to change the size of the material which can meet the different needs of different users.
Hammer Crusher Working principle:
Electric motor or diesel engine drives the hammer crusher's rotor to rotate at high speed in the crushing chamber. Material from the upper feed into the machine, high-speed hammer crushing the material. At the bottom of the rotor, a sieve plate is arranged. Particles smaller than the size of the sieve hole are discharged through the sieve plate. The coarse particle resistance larger than the size of the sieve hole remains on the sieve plate and continues to be beaten and ground by the hammer. Finally, the material is discharged from the hammer crusher through the sieve plate according to the required size.
Hammers
Hammer crusher features:1. Working hammer casting with new technology, wear-resistant and impact-resistant.2. Output size can adjust according to the customer's request.3. Beautiful overall design, compact structure, less easily damaged parts, easy maintenance compact structure, reduce dust pollution
Hammer crusher technical parameters:

Model	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Motor Power (kw)
PC400x300	≤200	≤25	5-10	11
PC600x400	≤250	≤30	10-22	22
PC800x600	≤250	≤35	18-40	55
PC1000x800	≤350	≤35	25-50	75
PC1000x1000	≤500	≤35	30-80	90
