Powder Coatings Laboratory Scale Twin Screw Extruder

Product Description

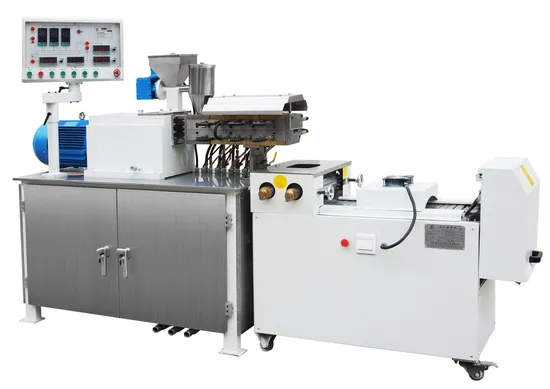

Powder Coatings Laboratory Scale Twin Screw Extruder
SLJ-H SERIES TWIN SCREW EXTRUDER
With high capacity, this series of extruders is an ideal equipment for extruding various chemical materials, wich can be fully hot melted to achieve excellent dispersed and kneading effect.
Main Technical Parameters of Powder Coatings Laboratory Scale Twin Screw Extruder:

Model	Output (kg/h)	Screw Speed (rpm)	L/D Ratio	Motor Power (KW)	Heating Power (KW)	Dimension (mm)
SLJ-20	10-15	0-500	14-48	3-4	3-4.8	1900*700*1400
SLJ-25	10-30	0-600	14-48	3-4	3-4.8	1900*700*1400
SLJ-30E	20-50	0-500	14-48	5.5-7.5	2.2-3.6	2600*630*1400
SLJ-35	80-120	0-500	14-48	9.2-11	2.2-3.2	3000*800*1400

Features of Powder Coatings Laboratory Scale Twin Screw Extruder:
1) High precision barrels with modular combination and horizontally-split clamshell design, easy color changing
2) Barrel has high efficient heat exchanging and automatic emperature controlling system with no solidification
3) Screw elements can be combined freely according to technical requirements
4) Screw, barrel and conveying parts are made of special alloy material to ensure the machine more durable
5) Strong self-cleaning ability, fine shearing and high mixing efficiency
6) Gear box is equipped with a separate lubrication and cooling system, with advantages of high torque, low noise < 60DB, high wear resistance, long lifespan, etc.
Company Introduction
Lingyu Powder Machinery Co., Ltd, established in 1999, is specialized in researching and manufacturing of powder coating processing equipment, with strong technical strength and abundant practical experience. Now we have hundreds of different machine models and get certifficates of CE approved by TUV Cermany, ATEX by Sira England and PSR11 by ECM Italy.
Following the principle of "Quality first, Credit first and customer first", we are able to provide commissioning and installation support, formulation guidance and 24-hour aftersale service, which help us win great trust and support from customers.
Now Lingyu has become a well-know manufacturer for powder coating processing equipment both at home and abroad, with No. 1 market share. Products have been successfully exported to 50 countries and regions. Friendly business relationship with many world famous powder coating manufaturers has been established and kept in long-term.
We sincerely welcome you to our company for business visit and technical communication. Together with our sister company-Longcai Advanced Materials, mainly specialized in powder coating resins, we'll try our best to provide the best solution of powder coatings to our customers.

---
