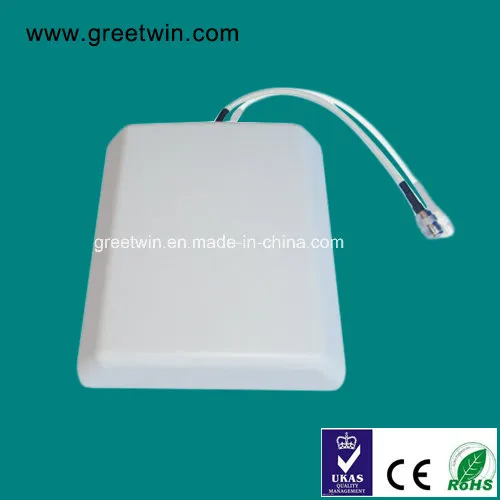

Indoor Coverage Antenna Directional Panel Antenna (GW-IWMA80257D)

Product Description

Indoor Coverage Antenna /Indoor Wall Mounted Antenna/Directional Panel Antenna(GW-IWMA80257d)
Product Feature
* Wide band and high gain.
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Suitable for indoor Wall mounted or Hold pole installation.

ELECTRICAL
Frequency Range	824-960/1710-2500-MHz
Bandwidth	136/790-MHz
Gain	7-dBi
Beamwidth	H:65-° E:55-°
VSWR	≤1.5
Polarization	Vertical
Max power	100 -W
Nominal Impedance	50 -Ω

MECHANICAL
Connector­­­	N female or customized
Antenna Dimension	165*155*45mm
Weight	0.6-kg
Rated Wind Velocity	60-m/s
Mounting Kits	L bracket & U bolt

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date

Sample	3-5 business days
<20 pcs	7-15 days
20-50 pcs	15-24 days
>50 pcs	Negotiate

Q5: Delivery Date of the sample by DHL/FedEx

USA/Canada/Europe/Asia	3-5 days
Middle East/Latin American	5-7 days
African	3-7 days

Q6.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by ****** Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q7.Others
(1)Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2)Output Power &Coverage Areas

Output Power	Coverage Areas
20dBm	500-1500m²
23dBm	1500-2500m²
25dBm	2500-4000m²
27dBm	3000-5000m²
30dBm	5000-8000m²

*Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
(3)Antenna
Cellphone signal booster must attach one indoor antenna and one outdoor antenna by two coaxial cables.
Website's price only includes a signal booster, please contact us if you need one set of devices with antenna, splitter, and coupler.

---
