Basic Info.
Installation
Direct Connected
Usage
Temperature Monitoring and Control
Electric Equipment
Three-phase Three-wire
Power Meter Connection
Terminal
Measured Signal
Continuous Wave
Type
Temperature Controller
Customized
Non-Customized
Product Name
Multi-Input Temperature Controller
Temp Monitoring
8 Channel PT100
Output Capacity
AC250V/5A DC30V/5A
Optional Function 1
RS485 Modus RTU
Transport Package
Fob Shanghai
Production Capacity
10000PCS/Per Month
Product Description

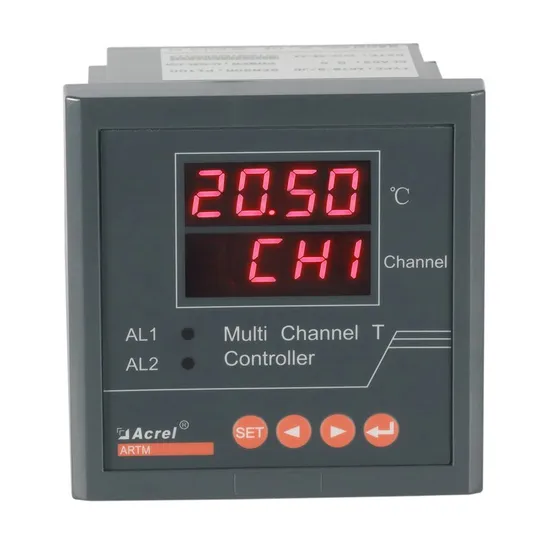

Product Description Multi Channel Temperature Controller
GeneralARTM-8/24 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.
Features
8 or 24 PT100 measurement;2 Alarm relays;LED display;Auxiliary power supply adapts with AC220V, DC220V, DC110V;1 RS485 serial communication, Modbus-RTU;
Technical Parameters
| Model | ARTM-8 | ARTM-24 |
| Channels | 8 | 24 |
| Inputs | Thermal resistance: Pt100 |
| Accuracy | 0.5S |
| Alarm | 2 groups normally open,Capacity AC250V/5A,DC30V/5A |
| Auxiliary power supply | AC85-265V, DC100-350V |
| Power consumption | ≤2W |
| Capacity | AC250V/5A; DC30V/5A |
| Baud rate(bps) | 1200,2400,4800,9600,19200 |
| Isolation | 2kV/1min Ac effective value |
| Communication | RS485 MODBUS-RTU |
| Cut-out | 88*88mm |
| Temperature | Working: -10ºC~+55ºC, Storage: -25ºC~+70ºC |
| Humidity | ≤95%(no condensation) |
| Altitude | <2000m |
Display
Wiring
Typical connection
>>
