Made in China 1.6ton (HQ16) with Closed Cabin Track Excavator

Product Description

1, HQ16 Mini excavator with cabin Features :
This HQ16 mini crawler excavator with cabin is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
2, HQ16 small crawler excavator Specifications :

Model
Operating Weight	1580kg
Digging bucket capacity	0.03cbm
Digging bucket width	400mm
Engine	KOOP(KD292)
Rated power	14kw
Displacement	14ml/r
Bore stroke	2 cylinder, fan cool
MAIN DEMENSIONS
Overall dimension( LxWxH)	2960x950x2550 mm
Wheelbase	910 mm
Total length of track on land	1230mm
Platform ground clearance	380 mm
Platform back turning radius	881 mm
Chassis width	980 mm
agricultural farm mini excavator Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1700 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2650 mm
Max. Dumping height	1750 mm
Max. Digging radius on ground	2200mm
Min. Rotation radius	1500 mm
Max. Upgrade height of bulldozer blade	170mm
Max. Digging depth of bulldozer blade	185 mm

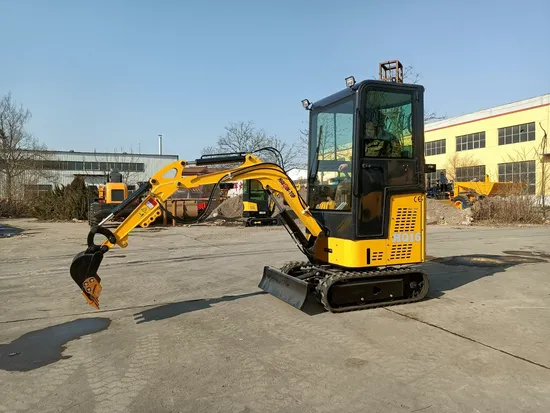

3,More photos of HQ16 Mini excavator :
4, Professional production line :
5, Certificate of Haiqin Machinery
6. More product categories of Haiqin machinery
7, Service from Haiqin Machinery
HAIQIN Machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!
