Product Details
Product Description
Product Description

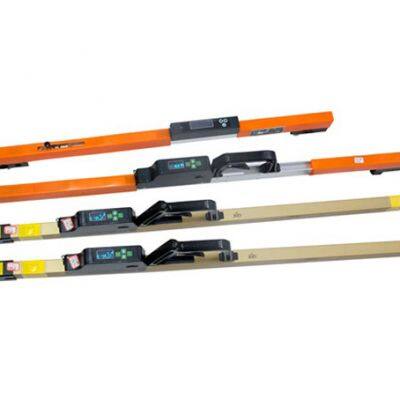

Digital Track GaugeDigital switch Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance,flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
Features1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation :working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CRCC , CE certificate.
Specification
Model(1435mm)
| GJC-TJG1
|
Track gauge(mm)
| 1384-1470
|
Gauge rail check gauge(mm)
| 1364-1450
|
Guard rail face gauge(mm)
| 1344-1430
|
Superelevation measuring range(mm)
| -200~+200
|
Flangeway Clearance(mm)
| 20-107
|
Superelevation division value(mm)
| 0.10
|
Track gauge division value(mm)
| 0.1
|
Track gauge max indication error(mm)
| ±0.25
|
Superelevation error(mm)
| ±0.45
|
Application rail line
| railway speed less than 250km/h
|
Detailed Images
Package & Delivery
pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG
Company Information
Wuhan Linkage Track Equipment Co., Ltd established in 2013. We are the leading manufacturer for railway equipment which are being used all over the world. The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
>>
