Kraft Paper Slitting Machine for Paper Slitting and Rewinding Machine Paper Slitter

US$18,000.00-22,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

KTSM-H150P

Type

Paper Slitting Machine

Work Method

Round Knife Cutting

Structure

Cutting Part

Packaging

Cartons

Classification

Paper Slitting Machine

Applicable Process

Process Materials

Suitable Substrates

Paper

Packaging Material

Wood

Product Name

Paper Slitting Machine

Keyword

Slitting Machine for Paper

Keyword 1

Kraft Paper Slitting Machine

Keyword 2

Paper Slitter

Keyword 3

Paper Slitting and Rewinding Machine

Keyword 4

Paper Roll Slitting Machine

Keyword 5

Slitting and Rewinding Machine Paper

Keyword 6

Paper Slitter Rewinder Machine

Paper Slitting

Yes

Non Woven Fabric Slitting

Yes

Round Slitting Knife

Yes

Roll to Roll Slitting

Yes

Unwind with Air Shaft

Yes

Rewind with Air Shaft

Yes

Unwind with Auto Loading

Yes

Transport Package

Wooden Pallet

Specification

3800x2800x1800mm

Trademark

KETE

Origin

China

Production Capacity

20 Sets/ Month

Packaging & Delivery

Package Size

380.00cm * 280.00cm * 180.00cm

Package Gross Weight

3000.000kg

Product Description

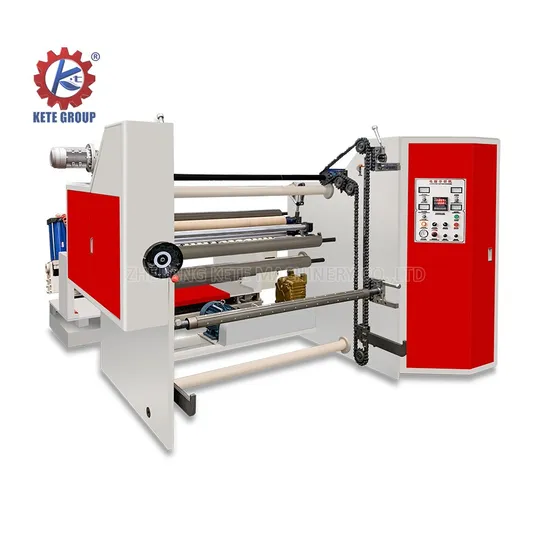

This Paper Slitting Machine Is Suitable for Slitting Paper Jumbo Roll Materials From Big Size To Small Size, It Is High Effective Converting Machine For Paper Bag
Making Machine.
Ω Use Round Slitting Knife.
Ω With Auto Length Counting System.
Ω Unwind and Rewind with Tension Control.
Ω Unwind with the EPC Control System.
Ω Unwind and Rewind using the Air Shaft. Ω Electrical Parts use Schneider Brand. Ω Unwind Shaft Type Auto Loading.
Ω Optional: Unwind Shaft-less with Auto Loading.
Ω Optional: Straight Slitting Knife.
Ω

Model	KTSM-H150P/ 1300	KTSM-H150P/ 1600
Max. Raw Material Width	1200mm (47.2")	1500mm (59")
Max. Unwind Diameter	Φ1200mm (47.2")	Φ1200mm (47.2")
Max. Rewind Diameter	Φ800mm (31.5")	Φ800mm (31.5")
Min. Slitting Width	30mm (1.18")	30mm (1.18")
Max. Slitting Speed	150m/min	150m/min
Error	<0.5mm	<0.5mm
Paper Core Inner Diameter	76mm/152mm (3"/6")	76mm/152mm (3"/6")
Total Power	11kw	12kw
Machine Weight	3000kg	3500kg
Machine Size (LWH)	3800 x 2800 x 1800mm	3800 x 3100 x 1800mm
Machine Power	3 Phase 220 / 380 / 440v 50/60Hz
