3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Optional Accessories: Main Motor: Servo5.5/7.5KW , Inverter 7.5KW Turret: 4 station electric turret ,6 station electric turret Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) Chip conveyor Steady Rest Other optional item: Driving tool turret, automatic feeding device and manipulator.
Model

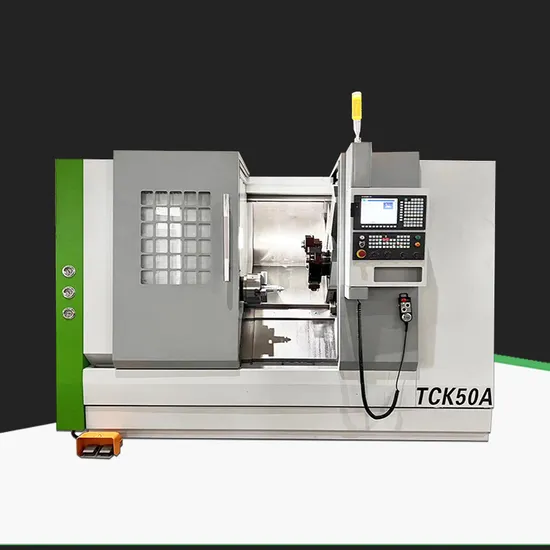

| TCK 50A (GSK 980TC3 system)
|
Standard accessories
| Unit ( mm )
|
Maximum turning diameter of bed
| Φ560
|
Maximum turning diameter of cross slide
| Φ260
|
Maximum processing length
| 350
|
Maximum machining diameter (disk type)
| Φ400
|
Standard chuck specifications
| 10 inch Bedford/Taiwan
|
Hydraulic knife tower
| 8 station(Optional)12
|
X axis maximum stroke
| 240
|
Z axis maximum stroke
| 400
|
Spindle speed
| 3000rpm
|
Spindle speed stage
| stepless
|
Spindle end code
| A2-6
|
Spindle through hole
| Φ66
|
Pull tube through hole
| Φ55
|
Maximum diameter of boring tool
| Φ40
|
Cutting feed rate
| 1-15000mm/min
|
X/Z motor torque
| 7.5/7.5/NM(X direction with brake)
|
X/Z axis rapid movement rate
| 18/18m/min
|
Tool body size of turning tool
| 25*25
|
Spindle motor power
| 7.5KW
|
Turret center high dimensions
| 100
|
Sleeve diameter
| 70
|
Sleeve stroke
| 80
|
Spindle unit
| Φ200
|
Screw bearing
| 35/35/PMI/HIWIN/Taiwan
|
X/Z Ball Screw
| 7206B/DB/P5/PMI/HIWIN/NSK
|
The X/Z axis screw specifications
| 3210/4010
|
Taper hole of tailstock sleeve
| MT5#
|
Maximum stroke of tailstock
| 200
|
Dimensions (length × width × height)
| 2500*1700*1890
|
Total Weight
| 2800KG
|
Main accuracy index of machine tool
|
|
Test items
| Standard tolerance(mm)
|
Periodic axial movement of the spindle
| 0.005
|
Radial runout of the positioning cone of the
| 0.005
|
Position
| X:±0.003 Z:±0.003
|
Repeat positioning accuracy A
| X:±0.003 Z:±0.003
|
Diameter consistency
| 0.01/150
|
Flatness
| 0.02/φ200
|
Thread pitch product error
| 0.010/50
|
Surface roughness
| Ra1.6μm
|
