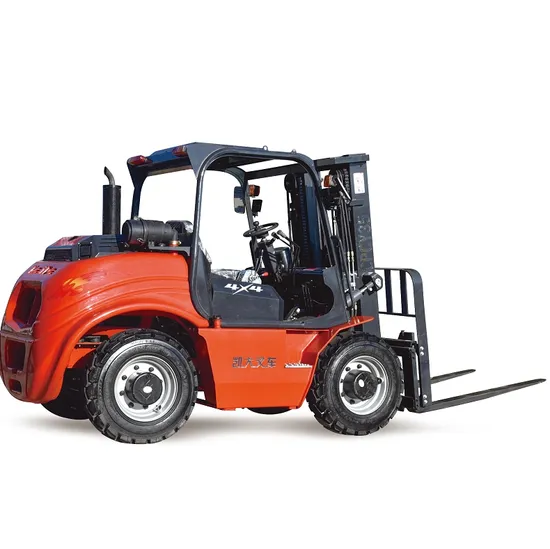

The Kaida CPCY35 is a cutting-edge 3.5-ton compact all-terrain forklift designed to excel in diverse working environments. Its robust four-wheel drive system ensures outstanding traction and stability, allowing it to navigate rough and uneven terrain with ease. With a compact design, the CPCY35 is perfect for tight spaces, making it ideal for construction sites, farms, and outdoor projects. Equipped with advanced safety features and a powerful engine, this forklift offers reliability and performance without compromise. Experience unmatched versatility and efficiency with the Kaida CPCY35, your go-to solution for all-terrain lifting needs.
| Manufacturer | Kaida |
| Model Name | CPCY35(Pioneer35A) |
| Axle | Wheel speed reduction |
| Gearbox | Torque Converter |
| Power source | Diesel |
| Operator type | Seated |
| Rated Load(kg) | 3500/4000 |
| Max. capacity(kg) | 3500-4000 |
| Max. Lift Height(mm) | 3000-6000 |
| Mast forward tilt angle(Degree) | 6 |
| Mast back elevation angle | 12 |
| Machine Weight(Kg) | 5400 |
| Max.Grade Ability | ≤35° |
| Steering Mode | Rear wheel steering |
| Drive mode | Four-wheel drive(AWD) |
| Number of drive wheels | 4 |
| Tyres type | Customized pneumatic solid tire(tubeless)/solid |
| Dimensions of front wheels | 10-16.5 |
| Dimensions of rear wheels | 10-16.5 |
| Minimum Ground Clearance(mm) | 200 |
| Wheelbase(mm) | 1710 |
| Min.Turning Radius(mm) | 2800 |
| Engine brand | China |
| Engine Power(kw) | 55 |
| Service brake | Hydraulic brake |
| Travel speed(km/h) | 30-35 |
| Type of drive control | Hydraulic |
| Counterweight | Cast Iron |
| Fork length(mm) | 1220,1370,1520,1670,1820,ect. |
| Overall dimensions(mm) | 2980*1500*2130(LWH) |
