4 Cavities Automatic Plastic Injection Blow Molding Machine

Product Description

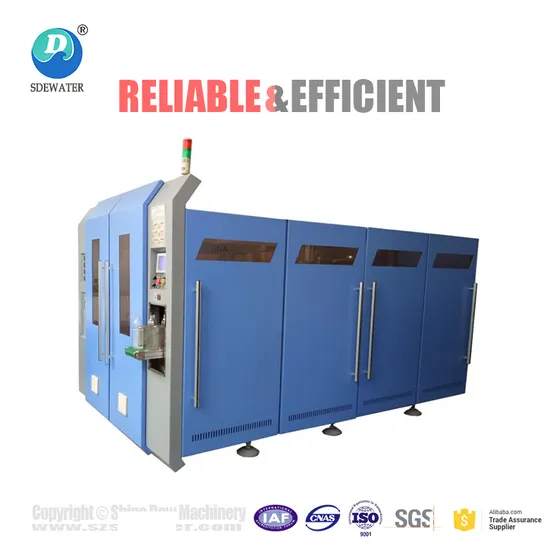

4 Cavities automatic plastic injection blow molding machine
Production Description
Application:
Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
Machine specifications are as below:

Model	Unit	SD-800-2	SD-800-4	SD-800-6	SD-800-9	SD-2000-2	SD-2000-4	SD-2000-6	SD-5000-2	SD-20000-1	SD-20000-2
0.5L	bph	2000-2200	4000-5000	6000-8000	9000-10000	2000	3000-4000	4000-5500	900-1500	300-400	600-800
Cavity	cavities	2	4	6	9	2	4	6	2	1	2
Max.Volume	L	0.75	0.75	0.75	0.75	2	2	2	5	20	20
Main power	Kw	34	66	66	66	34	82	82	66	88	88
Voltage	V	380/220V 50/60Hz 3 phase
Weight	kg	3000	4500	6500	8000	3000	5500	8000	5500	5500	7500
