OEM Manufacturer Container Type Silent Diesel Generator Set 1000kVA-2500kVA

Product Description

OEM Manufacturer Container Type Silent Diesel Generator Set 1000kVA-2500kVA Product Description 1. Rated Power : 10KVA - 2750KVA
2. Frequency :50/60HZ
3. Speed :1500/1800rpm
4. Phase :3phase ; single phase
5. Voltage: 110V - 460V
6. Fuel tank : 8 hours
7. Noise level : below 72db@7m
8. Environmental temperature : -5ºC ~ 50ºC
9. Water tank :50ºC environmental protection water tank
10. Diesel engine :Diesel , four stroke , water cooling
11. Alternator : brushless alternator /Mecc alte / Leroy Somer / Marathon/Kwise
12. Controller : Deepsea / ComAp / Smartgen
13. Leading time: Normal 20 days
14. Starting method : Manual or electronic , adjustable
15. Package : Plastic warpping film
16. Export port : Shanghai Port
17. Optional : ATS ,water heater , fuel heater...
18. Electrical start system with maintain free battery & engine driven battery charger;
19. Residence silencer with flexible connections & elbow;
20. Test report, drawings & manuals include.

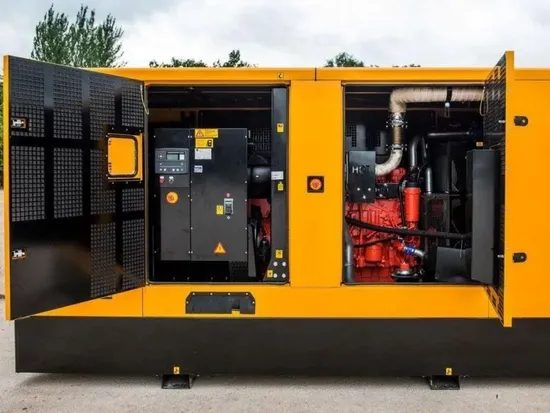

Detailed Photos
Product Parameters

Generator set model	PRP rating	ESP rating	Frenquency	Engine model	Governor	Alternator Model	Dimension of canopy	Genset weight(kgs)
QDING-16YC	16	18	50	4D24G4/A	Electrical	S184G16C6	1800x900x1400	1180
QDING-20YC	20	22	50	4D24G7	Electrical	S184G20D8	1800x900x1400	1180
QDING-30YC	30	32	50	YC4D60-D21	Electrical	S184G30E12	2400X1000X1560	1300
QDING-50YC	50	55	50	YC4D90Z-D21	Electrical	S184G30E12	2400X1000X1560	1550
QDING-58YC	58	64	50	YC4A100Z-D20	Electrical	S224G58C7	2400X1000X1560	1650
QDING-64YC	64	70	50	YC4A100Z-D20	Electrical	S224G64D8	2400X1000X1560	1650
QDING-75YC	75	84	50	YC6B135Z-D20	Electrical	S224G75D10	3000X1240X1760	2320
QDING-90YC	90	100	50	YC6B155L-D21	Electrical	S274G90B2	3000X1240X1760	2370
QDING-100YC	100	110	50	YC6B180L-D20	Electrical	S274G100B3	3000X1240X1760	2420
QDING-120YC	120	132	50	YC6B205L-D20	Electrical	S274G120C5	3000X1240X1760	2520
QDING-140YC	140	150	50	YC6A230L-D20	Electrical	S274G140C7	3000X1240X1760	2570
QDING-150YC	150	160	50	YC6A245L-D21	Electrical	S274G150D8	3300X1400X1950	2900
QDING-200YC	200	220	50	YC6MK350L-D20	Electrical	S274G200E11	3300X1400X1950	3250
QDING-250YC	250	275	50	YC6MK420L-D20	Electrical	S314G250D4	4300X2100X2300	4350
QDING-280YC	280	300	50	YC6MJ480L-D20	Electrical	S314G280D6	4300X2100X2300	4400
QDING-300YC	300	330	50	YC6MJ500-D21	Electrical	S314G300D7	4300X2100X2300	4500
QDING-320YC	320	350	50	YC6T550L-D21	Electrical	S314G320E8	4300X2100X2300	5200
QDING-360YC	360	400	50	YC6T600L-D22	Electrical	S314G360E9	4300X2100X2300	5450
QDING-400YC	400	440	50	YC6T660L-D20	Electrical	S354G400D2	4700X2100X2450	5770
QDING-450YC	450	500	50	YC6TD780L-D20	Electrical	S354G450D4	4700X2100X2450	5810
QDING-500YC	500	550	50	YC6TD840L-D20	Electrical	S354G500D6	4900X2250X2600	5850
QDING-600YC	600	660	50	YC6C1020L-D20	Electrical	S354G600E10	6000X2400X2800	11300
QDING-650YC	650	710	50	YC6C1070L-D21	Electrical	S404G640D2	6000X2400X2800	11400

Packaging & Shipping
Installation Instructions
Company Profile Our company was established in 2013 and consist of four branches nationwide, as one of the leading OEM manufacturer of diesel generator in China with good reputation and awards for many years, to meet different request from different market in the world. So far we have established closed and long cooperation with some world-class engine brand such as per kins, cum mins, Vol vo, MTU and FGW, what′s more, we are only one OEM manufacturer approved by FG Wilson in Hunan province, to meet better quality requested from customers, there are technical parameter of each QDING series for your reference.
Our Advantages 1. Inquiry-Professional quotation.
2. Confirm the price,lead time,payment term etc.
3. Our sales send the Proforma Invoice with our seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection.
8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.
9. Order can be say "finish" when you receive the goods and satisfy with them.
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better.
After Sales Service Qding strictly adopt the international warranty. Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation.
After expiration, Qding provides cost spare-parts maintenance for gensets .

---
