High Quality Fiber Optic Cable G652D 1-12 Core Communications Light ADSS Optic Fiber Cable

Product Description

Product Description

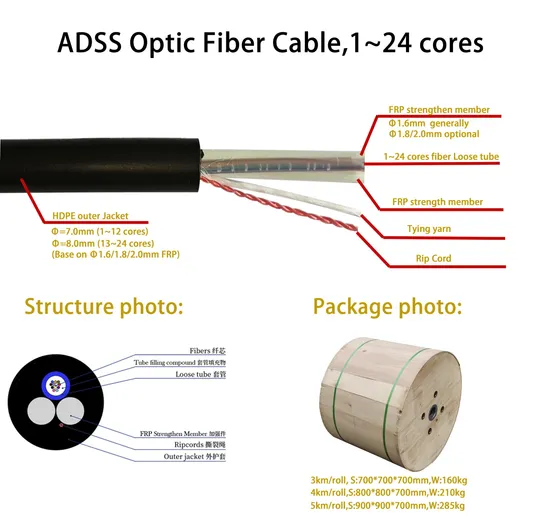

Items		Specifications
Fiber No.		12
Colored Coating Fiber	Dimension	250±15μm
	Color	Blue,Orange,Green,Browm,Gray,White, red , black, yellow ,violet , pink, Turquoise
	Qty	1
Loose Tube	Dimension	2.0mm±0.1m
	Material	PBT
	Color	Blue,Orange,Green,Browm,Gray,White, red , black, yellow ,violet , pink, Turquoise
FRP	Dimension	2.0mm±0.05mm
	Material	PVC
	No.	2
Outer Sheath	Material	PE
	Color	Black
OD.	Cable Outer Diameter	7.0 ±0.2mm
Weight	Cable Weight Per KM.	60 ±5kg/km

No.	Items		Unit	Specification
				G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
		1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	/Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	/Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.35
		1550nm	dB/km	≤0.22

Items	Unit	Specifications
Max. Tensile (Long Term)	N	2000
Max. Tensile (Short Term)	N	4000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2000
Min. Bend Radius(Dynamic)	mm	25D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70

Shenzhen Pioneergoods Communication Co., Ltd., established in 2009 and located in Shenzhen,specializes in R&D, production, sales, and technical services for fiber telecom equipment and FTTH solutions. As a leading pro-vider in China, we offer two main product lines:Opticl Fiber Cable: Armored Fiber Optic cable/Duct Fiber Optic cable/Aerial Fiber optic Cable/Direct Buried Fiber Optic cable/Figure 8 Fiber Optic cable/Underwater Fiber Optic cable/ADSS Fiber Optic cableOptical cable installation hardware: Profession-al hardware for indoor and outdoor installation of optical cable, to provide you with a full range of solutions to install optical cable.We prioritize quality, im-plementing a comprehensive control svstem to ensure all products meet the highest standards. From raw materials to delivery, our professional team oversees every step to guarantee excellence. Trusted by global clients like Belden, STC, and Telefonica, we also provide OEM services tailored to cus-tomer needs.At POGOODS, we value customer satisfaction, fostering inno-vation, quality, and efficiency. Choose us for reliable solutions and mutual success. FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

---
