C5240 C5263 Heavy Duty Reliable Double-Column Vertical Lathe for High-Volume Machining

Product Description

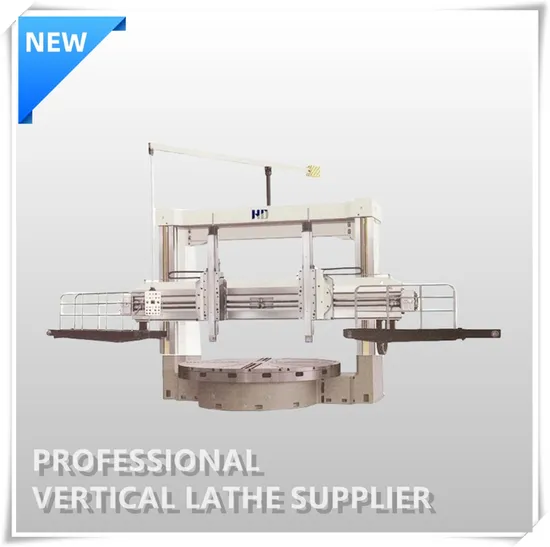

Product Picture
Specification Parameter

Specification	Unit	C5225	C5235	C5240	C5250	C5263
Max.cutting dia.	mm	2500	3500	4000	5000	6300
Max.cutting height	mm	1600	1600	1600	2000	3150
Worktable dia.	mm	2250	2830	3200	4000	4500
Max.loading weight	t	10	20	32	50	100
Worktable max.torque	kn.m	63	63	63	70	100
Worktable speed range	rpm	2-63	2-63	0.5-40	0.5-40	0.5-40
Worktable step	steps	16	16	16	16	16
Right tool post cutting force	kn	35	35	35	35	50
Left tool post cutting force	kn	28	28	28	40	40
Tool post horizontal travel	mm	1400	1900	2150	2765	3450
Tool post vertical travel	mm	1000	1250	1400	1600	2000
Crossbeam travel	mm	1250	1650	2150	265	3500
Main motor	kw	AC55	AC55	AC55	AC75	AC90
Machine weight	t	32	40	43	60	118
Dimension	mm	5180*4700*4800	6400*5050*5200	6900*5200*5700	9200*5800*5800	11500*7500*9300

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
