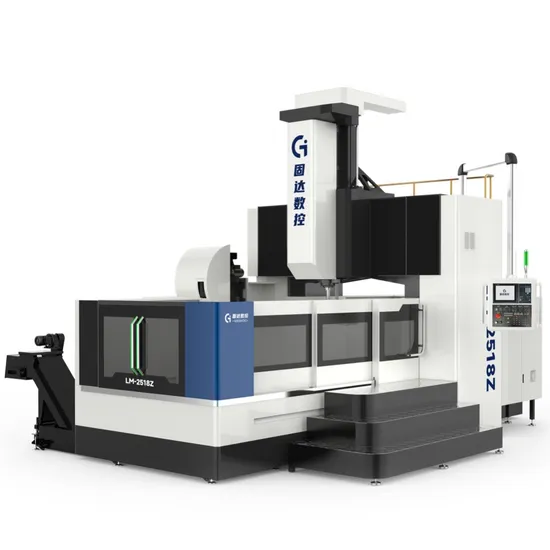

Double Column Machining Center High Accuracy 5-Axis Simultaneous CNC Machining Center

Product Description

Main Features
GooDa Gantry Machining Center LM-2518Z integrates multiple processes including milling, boring, drilling, and tapping.
The X and Y axes use heavy-duty roller linear guides, while the Z axis uses hard guides.
It comes with a standard Taiwan brand BT50-6000rpm spindle for both roughing and finishing operations. Alternatively, a gearbox driven spindle is available for high-power cutting requirements.
The machine is suitable for processing large molds, box-type, plates, and mold frame parts.
Main Functions
-X/Y-axis adpots roller linear guideway, Z axis adpots hardway;
-BT50-6000 rpm mechanical spindle to achieve rigid processing;
-Optional high coolant through the spindle to meet deep hole processing;
-Optional gearbox spindle to meet heavy cutting requirements.
Examples of Processed Parts
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	LM-2518Z
Category	Attribute	Value	Unit
Worktable	Worktable size	2500*1600	mm
	Max. load capacity	6000	KG
	T-slot	9-22*180	mm
Processing range	Distance between columns	1800	mm
	Workpiece through height	1200	mm
	Distance from spindle nose to table(St.)	200-1200	mm
Travel	X-axis travel	2500	mm
	Y-axis travel	2000	mm
	Z-axis travel	1000	mm
Feed speed	Guideway	X/Y: Roller linear guideway Z: Rectangular guideway	/
	Guide rail specifications	X/Y: 55 rollers * 6 sliders
	Rapid feed rate	12/12/12	m-min
	X/Y/Z cutting feed rate (MAX.)	8/8/8
Drive	X/Y/Z-axis ball screw (direct connection)	6312/5010/5010	/
	Spindle motor	18.5	KW
	X/Y/Z servo motor	X:36;Y:36;Z:36	N.m
Positioning accuracy	Positioning accuracy (X/Y/Z)	0.02/1000	mm
Repeat positioning accuracy	Repeat positioning accuracy (X/Y/Z)	0.015/1000
Size & weight	Machine space	7300*5400*5200	mm
	Machine weight	25	T

Core Components
Double Column Structure
The rigidity of the gantry structure with square columns enables it to withstand loads in multiple directions and torsion, maintaining high precision while heavy cutting.
Strong Crossbeam
Integration of the top beam and crossbeam achieves a robust construction, ensuring stable machining quality over the long term.
User-Friendly Design
The protective cover can be optional to effectively prevent splashing of chips and cutting fluid.
ATC System
Disc-type tool magazine (St.): BT50, 24T.

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
