Pharmaceutical Petrochemical Gas Chemistry Recovery Distillation Dry Screw Vacuum Pump

Product Description

Pharmaceutical Petrochemical Gas Chemistry Recovery Distillation Dry Screw Vacuum Pump Product Description
Product Description

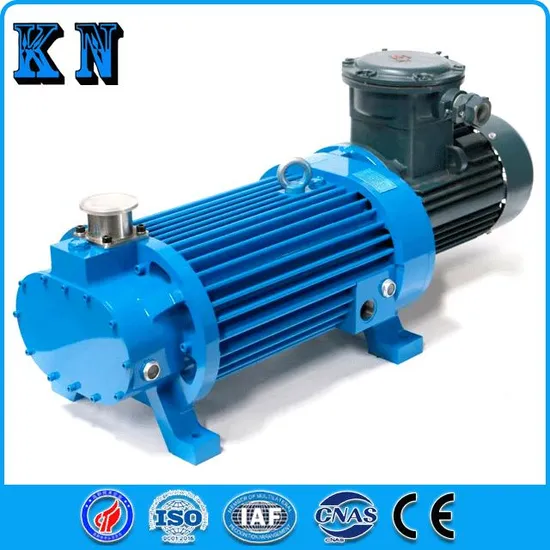

Dry screw vacuum pump, is the use of a pair of screw, made in the pump shell synchronous high-speed reverse rotation of the effects of the suction and exhaust and suction device, two screw fine dynamic balancing correction, and is supported by bearings, is installed in the pump shell, between screw and screw has a certain gap, so the pump work, no friction between each other, smooth running, low noise, Working chamber without lubricating oil, therefore, dry screw pump can remove a lot of steam and a small amount of dust gas occasions, higher limit vacuum, lower power consumption, energy saving, maintenance-free and other advantages.Dry Oil-Free Air Cooling Screw Vacuum Pump ,This is an advanced and widely used vacuum pump at present, It is one of the best-selling products of our company.
It adopts explosion-proof motor with high configuration, It has the characteristics of low noise, no oil and pollution, clean and high vacuum, simple and convenient use, operation and maintenance, Widely used in many industries, For example, oil and gas recovery, vacuum coating, biomedicine, food processing, single crystal furnace, vacuum forming, vacuum melting, electronic photovoltaic, semiconductor synthesis and many other industries are used.
The dry oil-free screw vacuum pump produced by our company is divided into air cooling and water cooling according to the extraction rate, and there are many models for you to choose.
Our Advantages
There is no medium in the working chamber, which can obtain a clean vacuum.
. No clearance between rotating parts, high speed operation, small overall volume.
There is no compression in the gas, suitable for extraction of coagulable gas.
Can remove a lot of steam and a small amount of dust gas occasions.
. High vacuum, the ultimate vacuum up to 1 Pa.
Screw material is high strength special material, material density, wear resistance, stable performance.
No friction rotating parts, low noise.
. Simple structure, convenient maintenance.
Wider range of use: corrosive environment can be used.
No oil consumption, no water.
Pump gas directly discharged from the pump body, no pollution of water, no environmental pressure, more convenient gas recovery.
It can be composed of oil-free unit with Roots pump and molecular pump.

Typical Use
------Oil and gas recovery. ------Biological medicine ------Food Processing ------ Single crystal furnace
------Vacuum forming ------Vacuum flame refining ------Electronic photovoltaic. ------Semiconductor synthesis
Product Parameters

Type (Air cooled series)	Basic parameters
	Pumping speed (m3/h)	Presure limit(Pa)	Power (kW)	revolution (rpm)	Inlet caliber (mm)	outlet caliber (mm)	Pump head weight (kg)	noise dB(A)	Overall dimension (length*width*height) (mm)
LG-10	10	≤5	0.75	2730	KF16	KF16	30	≤ 72	655x260x285
LG-20	20	≤5	1.1	2840	KF25	KF25	55	≤72	720x305x370
LG-50	50	≤10	2.2	2850	KF40	KF40	90	≤75	920x350x420
LG-70	70	≤30	3	2850	KF40	KF40	110	≤75	910x390x460
LG-90	90	≤30	4	2870	KF50	KF50	125	≤80	1000x410x495

Characteristic Curve

Detailed Photos
General Manager Speech
Deeply cultivate the vacuum technology, and research,develop and manufacture the vacuum equipment to provide the best solution in the vacuum field and make the vacuum application easier.
Company Profile
Shandong Kaien Vacuum Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and operation of vacuum equipment. The company has strong technical force, excellent equipment and considerate after-sales service. The product manufacturing process is managed in strict accordance with IS09001 quality system. It mainly produces and sells screw vacuum pump, roots pump, claw vacuum pump, runoff vacuum pump, scroll pump, water ring vacuum pump, vacuum unit and other vacuum systems.
New plant planning
The company's products have been for a number of food, medicine, refrigeration, drying plants and a number of transformer related equipment manufacturers for vacuum equipment. The products are widely used in vacuum drying and dehydration, kerosene vapor phase drying, vacuum impregnation, vacuum metallurgy, vacuum coating, vacuum evaporation, vacuum concentration, oil and gas recovery, etc.
High precision machining equipment
The company cooperates with many scientific research institutions and universities, such as Shandong University, China University of petroleum, Shandong Institute of mechanical design, etc.with colleges and universities to research and develop core technologies, and owns dozens of independent intellectual property patents.Our technology is leading, the product quality is stable, the product has a good reputation in China's domestic market, is sold all over the country, and is exported to Europe, America, Africa, the Middle East and Southeast Asia,We adhering to the basic tenet of quality, reputation and service, the company takes leading-edge technology of vacuum pump as its own responsibility, and wholeheartedly serves customers of vacuum equipment application in various industries with rigorous working attitude and professional working style.
Product quality wins consumer cooperation In shipment ISO 9001

---
