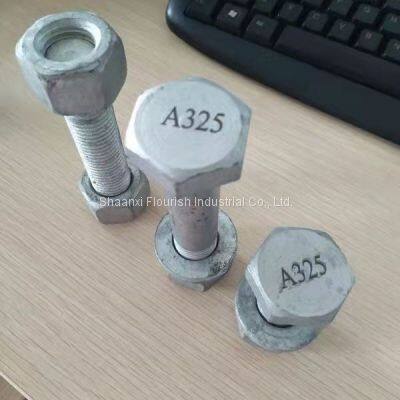

Heavy Hex Head Structural Bolt UNC Thread H.D.G. ASTM F3125 A325 TYPE 1

Product Details

Product Description

Product Description
Material:Finish:Standard:Head Type:Thread:Heat Treatment:Property Class:Metric Size:High Light:

Medium Carbon, Carbon Boron Or Medium Carbon Alloy Steel	Plain(No-coated), Zinc Coated, HDG
ASME B18.2.6	Hexagonal Head
UNC,UNF,UEF,UN,UNS	Quenched
ASTM F3125 A325 TYPE 1, TYPE 2 Or TYPE 3	5/8"-1-1/2"
Heavy Hex Head Structural Bolt, ASTM F3125 Hex Head Structural Bolt, Hexagonal Head A325 Structural Bolts

Heavy Hex Head Structural Bolt, UNC Thread, H.D.G. as per standard ASTM F3125 material grade A325 Type 1Standard Specification for Structural Steel Bolt, Head Treated, 120/105 ksi Minimum Tensile Strength. This specification covers two types of quenched and tempered steel heavy hex structural bolts haveing a minimum tensile strength of 120ksi for sizes 1.0 inch and 105 ksi for sizes over 1 to 1-1/2 inch, inclusive. The bolts are intended for use in structural connections. These connections are comparable to those covered under the requirements of the Specification for Structural Joints Using High-Strength Bolts, approved by the Research Council on Structural Connections; endorsed by the American Institute of Steel Construction and by the Industrial Fastener Institute.
Feature:

Product name	hex head bolt
Size	5/8"-1-1/2"
Material	Carbon Steel
Property class	A325 Type1, Type 2, Type 3
Thread	UNC,UNF,BSW
Finish	ZincPlated(Blue/Yellow/Black),Black,HDPE,Fluorocarbon Coating, XYLAN
Packing	Bulk in cartons on wood pallet or according to customer special demand.
Application	Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile

Advantage
1. Competitive price; 2. OEM service available
Packing
Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Payment terms
FOB, CIF, CFR, L/C, or others.
Delivery method
by sea, by air or by express service
Application
Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc.

---
