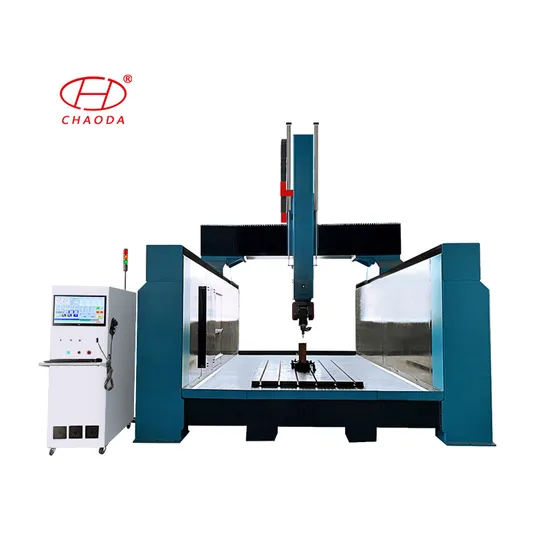

Engraving Machine Center for Large Stone Marble Granite Carving with Italy Hsd Spindle

Product Description

Engraving Machine Center for Large Stone Marble Granite Carving with Italy Hsd Spindle
We are factory professional produce 3 axis,4 axis,5 axis rotary cnc routers,cnc laser,3D scanner etc.
Can do all kinds of 2d,3d,4d flat decoration products and big rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,marble,granite,plastic,PVC,composite boards,acrylic,glass,aluminum and many other material
Welcome for your inquiry and visit our factory!
Model No.: JC1525-5 Axis
Specification( specified production cnc machines as your requests)

Model No.	JC1325-5 Axis
X,Y,Z,A,C axis working area	1.3meter width×2.5meter length×1meter height × ±120° × ±245°
Table surface	T-slot table with clamps
X structure	Helical rack and pinion,Taiwan linear square rail
Y structure	Helical rack and pinion,Taiwan linear square rail Y double motor drive
Z structure	Ball screw,Taiwan linear square rail
Tool magazine	Disk type automatic tool changer, with 8pcs tool magazine
5 axis head	2AXIS HEAD DOUBLE COLUMN,ITALY HSD
Spindle Power	2AXIS HEAD DOUBLE COLUMN,ITALY HSD
Spindle Rotating	0-24000rpm/min
Operating System	5axis Taiwan Syntec
Working Mode	Japan YASKAWA Servo motor and Drivers
Inverter	Taiwan Delta Inverter
Programming Software	Powermill
Voltage	AC380±15%,50HZ
Oil System	Automatically Lubrication System
Command Code	G code(*uoo,*nc,*mmg, *plt)
Net Weight	7500KG
Spare Parts	1 Education CD,24Tools,2 Wrenches
Training	2-3days free machine training and software training in our factory

Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum extruded, Copper and Aluminum Plates
Please kindly send your inquiry in below box!
We will reply soonest possible.
Thank you very much!

---
