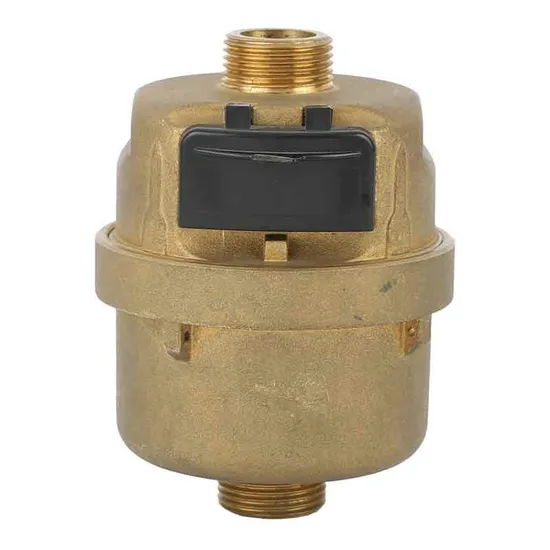

China Supply Piston Class C/Class D Volumetric Brass R160/ R200 ISO4064 Cold Water Meter

Product Description

Volumetric Piston Type
Material body: Brass
Size: DN15 to 20mm( 1/2" -3/4"), Available for cold water(40°C)
Accuracy: ISO 4064, Class C standard/ R160
Easy for interchange & maintenance
MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	C	3	1.5	22.5	15	0.0001	99999
20	C	5	2.5	37.5	25	0.0001	99999

INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	Length L	Width L	Height W	Connrcting Thread D			Weight Kg
	mm
15	115	86	90	G 3/4B			0.95
20	130	94/103	115	G 1B			1.2

WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
