Plate Vulcanizing Press, 4 Column Type Hot Platen Vulcanizing Press

Product Description

Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.

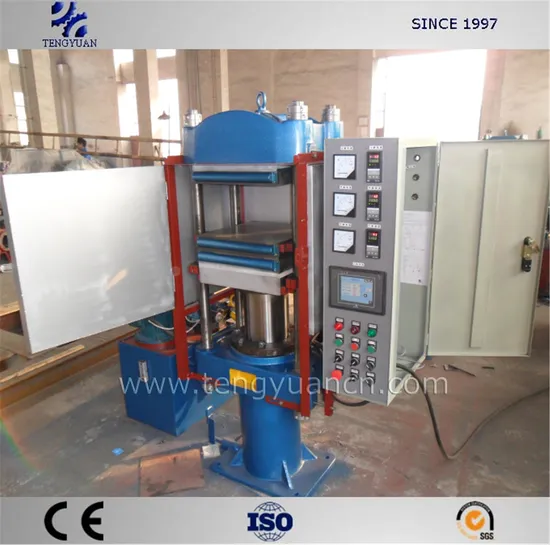

XLB-D600X600X1/1.70MN 170tons plate vulcanizing press, hot vulcanizing press, 4 column type platen vulcanizer
Machine Usage:
Normally all our rubber vulcanizing presses are used for suppressing various kinds of rubber products, thermosetting plastic products, and also can be used as common hydraulic presses.
Machine Introduction:
1. Rubber vulcanizing press mainly consists of host machine, hydraulic system, and electronic control system.
2. Fuel tank is installed on the left of host machine, won't be affected by the temperature of host machine.
3. Adopts hydraulic system drive, automatic control, the vulcanizing time, pressure and temperature are all adjustable.
4. Hot platens' temperature is controlled by temperature control system to guarantee the high precision and good quality of final products.
5. Automatic control system can accurately realize auto lifting, auto mould open/close, auto air exhausting, auto pressure filling, also with the vulcanizing timing function, vulcanizing alarms function, automatic control & manual control switch function.
6. Mould push-pull device can be configured to improve the efficience and save labor.
Machine Features:
1. Durable frame structure with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration.
8. PLC control system.
9. High efficient and superior vulcanizing performance.
10. Low power consumption & labor saving.
Technical Parameters:

Model	Total Pressure (MN)	Daylight (mm)	Working Layer	Piston Stroke (mm)	Main Motor Power (KW)	Overall Dimension (L x W x H) (mm)
XLB-350×350×2	0.25	125	2	250	2.2	1200×580×1200
XLB-400×400×2	0.50	125	2	250	2.2	1400×500×1400
XLB-600×600×2	1.00	125	2	250	2.2	1880×820×1680
XLB-750×850×4	1.60	125	4	500	3	1730×930×2460
XLB-900×900×2	2.5	200	2	400	4	2345×960×1385
XLB-1200×1200×1	3.15	300	1	300	4	2800×1300×2300
XLB-1300×2000×1	5.60	400	1	400	8	2000×1860×2500
XLB-1500×1500×1	8.00	800	1	800	16.5	2200×2200×4300
XLB-1500×2500×1	15.00	400	1	400	11	3000×2500×3300
XLB-2000×2000×1	20.00	400	1	400	11	3600×3800×3300

Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirm.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery :
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
Note: Please let us know: 1. total pressure 2. hot platen size 3. working layer number 4. daylight 5. heating mode for us to design the specially customized press for you.

---
