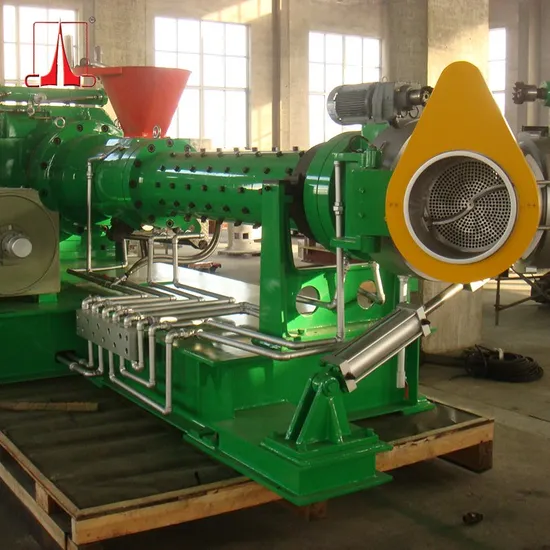

Xd-250ks*14D Pin Barrel Cold Feed Extruder for Rubber Extruding Type Making

US$80,000.00-100,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Xd-250ks*14D
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Color
Green
Screw
250mm
Ratio
14:1
Max. Screw Speed
0-26r/Min
Power
400kw
Capacity
3000kg/H
Key Word
Pin Barrel Cold Feed Rubber Extruder
Brand
Lanhang
Weight
15t
Application
Inner Tube Rubber Extrusion
Motor
Siemens in China Motor or Chinese Famous Brand
Engineers Available to Service Machinery
Engineers Available to Service Machinery Overseas
Die Head
Double or Single
Barrel Type
Pin Barrel
Screw Materal
38CrMoAl
Transport Package
Film Covering
Specification
SGS
Trademark
LANHANG
Origin
China
HS Code
84778000
Production Capacity
50 Sets/Year

Product Description


Application of Our Pin Barrel Cold Feed Extruder Product Description
For rubber and plastic extrusion, calender feeding. Applicable to rubber/plastics sheets, tube and other profile extrusion equipped with different extrusion heads.
Specification: Screw diameter Φ45-Φ250mm; Length/diameter ratio 4-20; Pin barrel, plain barrel; warm feed, cold feed; vacuum extruder.

Product Parameters

Main Parameters:

Model
Item
 XJD-45
 XJD-60
 XJD-75
 XJD-90
 XJD-120
 XJD-150
 XJD-200
 XJD-250
Screw diameter (mm)
45
 60
 75
 90
 120
 150
 200
 250

L/D ratio
 8-12
 8-12
 8-14
 12-16
 12-16
 12-18
 12-18
 12-18
Screw RPM
 ~70
 ~80
 60
 ~60 (55)
 ~50
 ~45
 ~33
 ~26
Production capacity (kg/h)
 15-25
 80~150
 100-180
 250~350
 600~800
 1000-1500
 1600-2500
 2800-3500

Main motor power (KW)
 12-22
 18.5~22
 37-45
 45~75
 75~110
 160~250
 220~355
 355~450

Power consumption (KW)
 Main motor power
+26
 Main motor power
+26
 Main motor power
+26
 Main motor power
+46
 Main motor power
+46
 Main motor power
+66
 Main motor power
+82
 Main motor power
+82
Dimension
 L
 2,165
 2,200
 2,300
 3,360
 3,750
 5,200
 7,150
 ~8,500
W
 1,100
 1,310
 1,150
 1,150
 1,600
 1,650
 1,950
 ~2,450
H
 1,600
 1,400
 1,600
 1,450
 1,550
 1,600
 2,300
 ~2,600

Total weight (kg)
 1,200
 1,800
 2,100
 3,000
 4,200
 5,350
 9,800
 ~15,000
Company Profile
Why Choose from Lanhang:
1. Since1992, with more than 20 years' professional experience
2. Overseas service center available (in Europe, Japan, Dubai, etc.)
3. International CE, SGS, IAF, CNAS certification
4. National high-tech enterprise / products
5. Various National Patent for Inventions Letters for rubber & plastic machinery
6. ISO9001:2008 management
