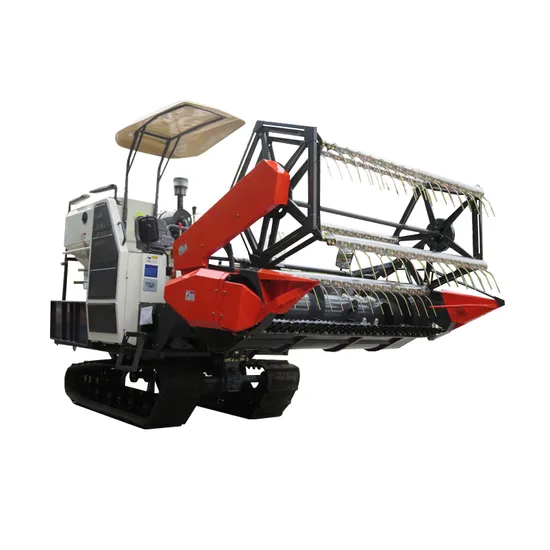

4lz-4.5 Small Grain Tank Manual Operation Rice Combine Harvester

Product Description

4LZ-4.5 Small Grain Tank Manual Operation Rice Combine Harvester
Welcome To Wubota Machinery
Product Parameter

No.	Item		Unit	Specification
1	Model		/	4LZ-4.5
2	Sturcture Type		/	Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled
3	Engine	Type	/	4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine
		Rated Power	kW	65
		Rotating Speed	r/min	2400
4	Dimension(L*W*H)	Working State	mm	4850*3200*2500
		Transportation	mm	4850*2735*2500
5	Weight		kg	3000
6	Cutting Width		mm	2180
7	Feeding Capacity		kg/s	4.5
8	Minimum Ground Clearance		mm	310
9	Operation Speed		km/h	2.4 to 6.0
10	Productivity		hm2/h	0.3 to 0.8
11	Fuel Consumption		kg/hm2	18.5 to 40
12	Cutter Type		/	Standard Type II
13	Cutting Header Auger Type		/	Telescopic Transverse Conveyor Auger
14	Reel	Type	/	Eccentric Tooth(off center)
		Diameter	mm	∮1000
		Quantity	pc	5
15	Threshing Roller	Type	/	Vertical Axis Flow Spike Tooth
		Quantity	pc	1
		External(D*L)	mm	∮655*1877
16	Concave Sieve Type		/	Grid
17	Brake Type		/	Wet Friction Plate
18	Fan	Type	/	Centrifugal
		Diameter	mm	∮346
		Quantity	pc	1
19	Rubber Crawler	Size	mm	450mm*90mm*56, 500mm*90mm*56
		Track Gauge	mm	1190
20	Gear Box		/	Hydraulic Stepless Speed Transmission(HST)
21	Rethresher Type		/	Auger Spike Tooth
22	Grain Unloading Type		/	Hydraulic Rate

Application
Product Details
Packing & Shipping
Company Introduction:
After Sale Service
FAQ:
1. Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: We usually suggest the buyer order some quick-wear parts separately.
2. Q: Is there any option for your combine?
A: Yes, option parts such as: Rubber track, grain tank and type of grain unloading
3. Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4. How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5
5. Q: What is the payment item?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.

---
