Product Description
Product Description

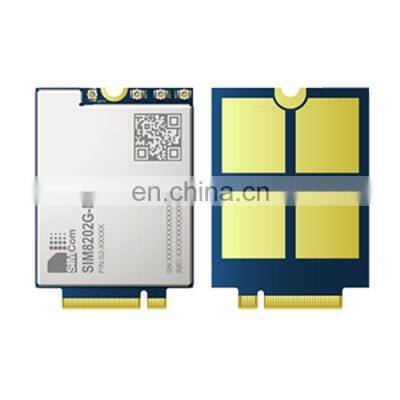

DescriptionSIM8202X-M2● The SIM8202X-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.● It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.● The SIM8202X-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.● It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product Advantages● Standard M.2 interface● High throughput data communication● AT commands of the SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modulesProductSIM8202E-M2SIM8202G-M2Form FactorM.2M.2Dimensions(mm)42.0*30.0*2.342.0*30.0*2.3Frequency BandsSub-6Gn1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71LTE-TDDB34/B38/B39/B40/B41/B42/B43/B48B34/B38/B39/B40/B41/B42/B43/B48LAAB46B46WCDMAB1/B2/B3/B4/B5/B8B1/B2/B3/B4/B5/B8GNSS●●Temperature-30℃ ~ +70℃-30℃ ~ +70℃Electrical FeaturesSupply Voltage(V)3.135 ~ 4.43.135 ~ 4.4Data TransferSub-6G2.4Gbps(DL)/500Mbps(UL)2.4Gbps(DL)/500Mbps(UL)LTE1Gbps(DL)/200Mbps(UL)1Gbps(DL)/200Mbps(UL)HSPA+42Mbps (DL)/5.76Mbps(UL)42Mbps (DL)/5.76Mbps(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0TLS●●File System●●FOTA●●Android RILAndroid 6/7/8/9Android 6/7/8/9USB DriverMicrosoft Windows Win7/Win8/Win10/Linux/AndroidMicrosoft Windows Win7/Win8/Win10/Linux/AndroidMBIMWin8/Win10Win8/Win10NDISLinux/Win7/Win8/Win10Linux/Win7/Win8/Win10Firmware UpgradeUSBUSBInterfacesSIM Card1.8V/2.95V1.8V/2.95VUSB●●PCIe●PCM●●I2C●●UART●Diversity Receiver●CertificationsRegulatoryCE*/RCM*/RoHS*/REACH*CCC/SRRC*/CTA*/RoHS*/REACH*/CE*Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
