Soil Moisture and Temperature Sensor

Product Description

Series BND-MS10 Soil Moisture and Temperature Meter for Agriculture Farming

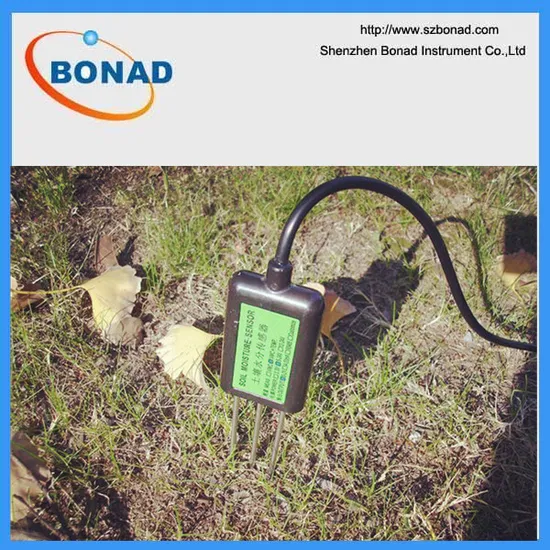

Product show


Technical parameters:

technical parameter
The signal output type	Output voltage 0-2V output impedance <1Kohm	RS485 interface, Modbus protoco	RS485 interface, Modbus protocol RS485 interface, Modbus protocol
Power supply voltage	5-30V/DC	12-30V/DC	5-30V/DC
Maximum power dissipation	40mA@24V DC	80mA@24V DC (When the two current output channel is 20mA)	30mA@24V DC
Soil moisture measurement area	The probe as the center, the diameter of 7cm, height of 7cm cylinder
Response time (moisture and temperature)	Less than 1 second
Soil moisture measurement range	Optional range: •0-30% volumetric moisture content •0-50% volumetric moisture content •0-100% volumetric moisture content
Soil moisture measurement accuracy	0-53% range is ± 3%; 53-100% range is ± 5%
Soil temperature measuring range	-40~80ºC
The measurement precision of soil temperature	±0.5ºC
Protection grade	IP68
Operating environment	-40~85ºC
The storage environment	-40~85ºC
The material of the probe	Food grade stainless steel
Sealing material	The black flame retardant epoxy resin
Installation	All buried or probe into all of the measured medium

Code number	Code	Code Description
Code 1: Products	MEC10	MEC10 soil moisture,soil electric conductivity (EC)and soil temperature 3 in 1
Code 2: measurement parameters	A	soil moisture,soil electric conductivity (EC)and soil temperature 3 in 1
Code 3:Soil moisture range	A B	0-50% 0-100%
Code 4:Conductivity Range	A B C D	0-5000us/cm 0-10000us/cm 0-20000us/cm custom design
Code 5: supply voltage	A B C D	3.6-30V DC 12-30V DC 2.7-16V DC custom design
Code 6: Output signal	A B C D E F G	Voltage Output 0-2V Current output 4-20mA RS485 interface ,Modbus Protocol RS485 interface,Modbus Protocol & Voltage Output0-2V RS485 interface,Modbus Protocol & Current Output4-20mA SDI-12 interface custom design
Code 7: line length	002 XXX	2M custom design
Code example: MEC10 soil sensor,Soil moisture range:0-100%,soil electric conductivity range:0-10000us/cm,3.6-30V power supply,RS485 interface,Modbus protocol,5M cable.Code sample :MEC10 - A B B A C 005

FAQ
1.What's your MOQ?
MOQ for most of our products is 1 unit. If you purchase more products, you will get a better price accordingly.
2.Do you have an OEM/OED service?
Yes! Please contact us for details.
3.What's the lead time?
It depends on the product and the qty.
If it is in stock, 3~7 days will be taken. Normally, 1~2 weeks for most products. 4~7 or more weeks will be needed for complex ones.
Please contact us to confirm.
4.What's the payment term?
T/T, Western Union, Money gram ,PayPal ,etc .
5.What's the shipping way?
Via air , sea or express like DHL, UPC, TNT, FedEx and so on.
6.What's your after-sales service policy?
One year warranty and life long tech support.

Remarks:
If you want a timely reply, try to contact us within our working hours.
If we are not online, try to leave a message. We will respond as soon as we can.
