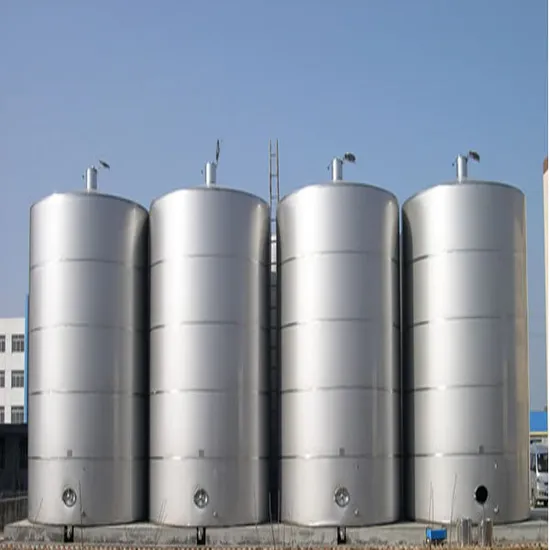

Large Outdoor Milk Storage Tank with SGS Approved

Product Description

Stainless steel storage tanks are used as liquid storage tank, detergent storage tank, temporary storage tank and water storage tank etc; Such sanitary storage tanks are widely used in fields like foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
According to storage capacity, the storage tanks are classified into tanks of 1-5000m3, For storage tanks with storage capacity of more than k20 m3, It is suggested to use outdoor starage tanks. The storage tank is made of SUS316L, SuS304 or Q235 and has good heat presevation perforamance. THe accessories are as follows: Inlet and outlet, manhole, theromometer, liquid level indicator, high and low liquid level alarm, fly andinsect prevention spiracle, aseptic sampling vent, meter CIP cleaning spraying head.
Applicable range
1. Used as liquid storage tank, fuel tank, liquid composing tank, temporary storage tank and disinfection tank etc.
2. Applied in foods, dairy products, fruit juice beverage, pharmacy, chemical industry etc.
Configuration of tank
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Quick open manhole.
4. Various style of CIP cleaners.
5. Fly and insect resistant sanitary breathing cover.
6. Adjustable feet.
7. Thermometer (According to customer requirements).
8. Ladder (According to customer requirements).
9. Jacket (hollow jacket or coil pipe jacket are available).
10. Liquid level meter and level controller (According to customer requirements).
11. Agitator (Acc. To customers' requirements.
Technical Parameter of Vertical Stainless Steel Tank

Nominal volume	Real Capacity	Nominal diameter	Height	Inlet diameter (a)	Spout diameter (b)	Exhaust port diameter(c)	Overflow port(d)	Manhole (e)	Level mouth diameter(f)
2m3	2.05m3	1200mm	1820mm	50mm	50mm	50mm	800mm	400mm	25mm
3m3	3.05m3	1400mm	2000mm	50mm	50mm	50mm	800mm	400mm	25mm
5m3	5.05m3	1700mm	2250mm	50mm	50mm	50mm	800mm	400mm	25mm
10m3	10.5m3	2200mm	2650mm	50mm	50mm	50mm	800mm	400mm	25mm
20m3	20.5m3	2800mm	3260mm	50mm	50mm	50mm	800mm	400mm	25mm
30m3	30.5m3	3200mm	3740mm	80mm	80mm	50mm	1000mm	500mm	25mm
50m3	50.5m3	3200mm	6230mm	100mm	100mm	50mm	1000mm	500mm	25mm
100m3	100.5m3	5400mm	4500mm	100mm	100mm	50mm	1000mm	500mm	25mm
200m3	200.5m3	6600mm	6000mm	100mm	100mm	50mm	1000mm	500mm	25mm

Technical Parameter of Horizontal Stainless Steel Tank

Nominal volume	Real Capacity	Nominal diameter	Mounting dimensions (L, L1, L2, L3)	Inlet diameter Dg	Spout diameter Dg	Manhole Dg	Number of seat	Remark
2m3	2.05m3	1000mm	L=2720mm L1=1500mm L3=200mm	50mm	50mm	400mm	2	The design conditions for the normal temperature and pressure, accept custom.
3m3	3.05m3	1200mm	L=2850mm L1=1550mm L3=250mm	50mm	50mm	400mm	2
5m3	5.05m3	1400mm	L=3500mm L1=1920mm L3=300mm	76mm	76mm	400mm	2
10m3	10.5m3	1800mm	L=4230mm L1=2300mm L3=300mm	76mm	76mm	500mm	2
20m3	20.5m3	2200mm	L=5630mm L1=3080mm L3=400mm	76mm	76mm	500mm	2
30m3	30.5m3	2400mm	L=7200mm L1=3600mm L3=500mm	89mm	89mm	500mm	3
50m3	50.5m3	2800mm	L=8860mm L2=2660mm L3=500mm	89mm	89mm	500mm	3
80m3	80.5m3	3200mm	L=1085mm L2=3300mm L3=600mm	89mm	89mm	500mm	3
100m3	100.5m3	3200mm	L=1334mm L2=4140mm L3=600mm	89mm	89mm	500mm	3

Overview Summary
1. Food pharmacy Stainless steel tanks:
Stainless steel ingredient storage tanks, stainless steel tanks with thick, dilute with stainless steel tanks, stainless steel extraction tanks, stainless steel reaction tank, stainless steel tank, stainless steel mixing tank, stainless steel seed tanks, stainless steel tanks nitric acid, acetic acid stainless steel storage tank, stainless steel tank barrels carbon disulfide, stainless steel water tower tank.
2. Wine Dairy class stainless steel tanks:
Stainless steel wine tanks, stainless steel wine tanks, stainless steel wine tanks, stainless steel milk (milk) tank, stainless steel beverage tank
3. Chemical stainless steel tanks:
Stainless steel oil storage tanks, stainless steel transport tanks, stainless steel cooling tanks, stainless steel insulated tanks, stainless steel tanks at all levels of the heat exchanger, stainless steel buffer tank, stainless steel tanks and chemical industries outdoor stainless steel pressure vessel.
About us
Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.

---
