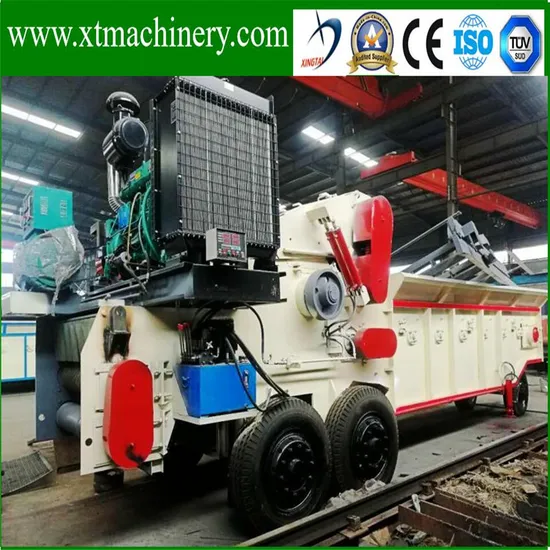

1250mm Feeding Width, 160HP Diesel Engine, 15ton/Hour Capacity Wood Crusher

Product Description

Wood chipper machine brief introduciton
The wood chipper machineis a special equipment of biomass energy power plant for fuel reserve. With the widely raw material it can be crushed, such as all kinds of trees, undersized log, timber cutting residues such as branches, wood processing residues (such as slab, batten, log core, building templates and so on), Also some non-wooden raw materials (such as waste of flax, reed, bamboo, maize straw, cotton stalk, etc.).
With the more than ten years manufacturer experience of wood drum chipper, According to the raw materials characteristics and biomass energy plant's requirement for material particle size, we design and develop this series machine,and has the feature of widely raw material adaptability, high production capacity, reasonable structure, easy operation, safety and reliable, easy maintenance and so on. It's the most ideal biomass crusher equipment at present in the world.

To cut big raw material into small chips with size 25mm-50mm
Model	XT1400-500		XT1600-600		XT1400-800
Rotor diameter	800mm		960mm		1000mm
Blade numbers	2-4pcs knife blades/32 hammer baldes		4-6pcs knife blades/40 hammer baldes		4-6pcs knife blades/40 hammer baldes
Running speed	760r/min		800r/min		900r/min
Mesh screen size	30mm-50mm or customerized		30mm-50mm or customerized		30mm-50mm or customerized
Main power	200KW		220KW		250KW
Feeder power	11KW+7.5KW		11KW+7.5KW		11KW+7.5KW
Discharge power	4KW+5.5KW		5.5KW+11KW		5.5KW+11KW
Oil power	3KW		4KW		4KW
Feed inlet size	1400mmx500mm		1600mmx600mm		1400mmx800mm
Feed inlet conveyor	4m length chain plate conveyor		5m length chain plate conveyor		6m length chain plate conveyor
Maximum raw material size available	1300mmx420mm		1500mmx520mm		1300mmx700mm
Output capacity	12-15Ton/Hour		15-20Ton/Hour		20-25Ton/Hour
Machine size(LxWxH)	7500mmx2600mmx2400mm		8900mmx2800mmx2600mm		10500mmx3300mmx3000mm
Machine weight	16.5Tons		20.1Tons		26.3Tons
Raw material available: Waste contruction board, waste pallet, original logs, tree branch, wood slab, straw, reeds, bamboo...etc

---
