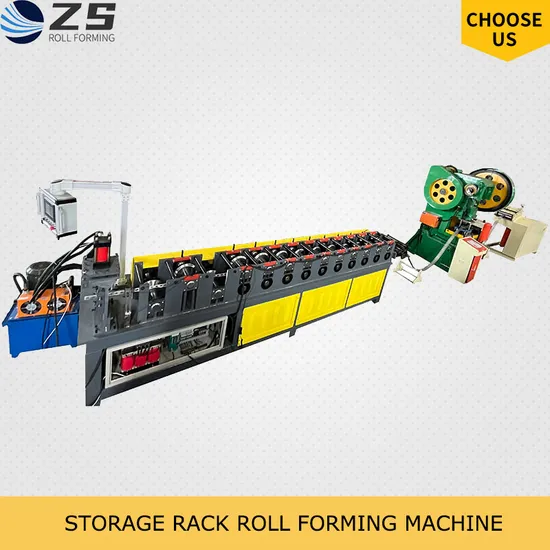

Goodshelf Production Machine for Upright Profile Steel Structure Shelf Rack

Product Description

Product Description
Introducing the ultimate solution for streamlined storage solutions: the Shelf Rack Storage Column Shop Goodshelf Making Cold Roll Forming Machine by Cangzhou Zunsheng Import and Export Co., Ltd. This cutting-edge machine is designed for producing upright profile steel structure shelf racks with unparalleled precision and efficiency.
Features
1. Experience unparalleled convenience, simplicity, and speed with our state-of-the-art operation. This machine ensures that your production process is smooth, efficient, and user-friendly, allowing for seamless operation.
2. Achieve unmatched production efficiency with our machine's automatic online punching, roll forming, and cutting processes. These advanced features work in harmony to deliver superior precision and productivity, reducing manual intervention and boosting output.
3. Versatile and integral to the shelving and racking industry, our machine is designed to meet diverse needs. Whether you are producing standard or customized shelf racks, this machine offers the flexibility and reliability to handle various production requirements.
Profiles:
Material:
Effective Width: 60mm-80mm - Optimized for a range of shelf rack dimensions.
Effective Width Tolerance: ±0.5mm - Ensuring precise and consistent production quality.
Material Thickness: 1.0-1.5mm - Capable of handling various thicknesses for durability and strength.
Length Tolerance: ±1 (for lengths up to 4 meters) - Guaranteeing accuracy in every piece produced.
Applicable Material: Galvanized Sheet (GI) - Perfect for durable and corrosion-resistant shelf racks.
Cold Rolled Steel (CRC) - Suitable for high-strength and smooth-finish applications.
Yield Strength: 235Mpa-550Mpa - Ensuring the material can withstand heavy loads and stress.
Working Flow:
Decoiler → Leveling Device → 63 Tons Servo Motor Punching Machine → Roll Forming System - A meticulously designed flow for efficient and precise production.
→ Fly Saw - For accurate and clean cutting.→ Cutter - Ensures perfect dimensions and finishes.
→ Exit Rack - For easy handling and storage of finished products.
Detailed Photos
Capacity: 3 TonsElectrical Decoiler with Flattening: one setAdvanced automatic control for steel coil inner bore shrinkage and operational stop
Maximum Feeding Width:600mm
Coil ID Range:508±30mm, Outside Diameter:1500mm
Maximum Capacity:5 tons, Motor:3KWfeaturing frequency speed control for optimum precision
63 Tons HIGH SPEEDPunching machine positioned before roll forming, and equipped withone set of meticulously engineered punching mold.
Punching machine is secured with a robust safety cover on four sides, with one side featuring an access door
Body Frame constructed fromH450 type steel through expert welding
Side Wall:Manufactured from high-grade casting steel;
Rollers crafted frompremium Bearing steel GCr15,precision machined and hard chrome coated;
Shafts made fromdurable 45# steel,undergoing quenching and tempering heat treatment before being hard chrome plated. Diameter=φ75/85mm, and precision machined for superior performance
Gear & chain drive system with18 stepsto form
Main Motor:11KW, featuring frequency speed control
Speed Reducer Motor:Kseries
Production Speed:10-15m/min(including punching and cutting duration)
Hydraulic Cutting
Hydraulic Motor: 5.5KW
Cutting Tool:No flying
PLC Control System
Automatic control for quantity and cutting length
Input production data (batch, pcs, length, etc.) via the touch screen for seamless automatic operation.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)
Inverter	Siemens (German brand)
7-Inch Color Touch Screen	Siemens (German brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty period is18months following machine delivery.
Within 24 months, we provide replacement parts free of charge via courier.
2. Lifelong technical support available for the machine.
3. Skilled technicians available for installation and training at the client's factory at an additional cost.
Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
