Hot Sales Open Rubber Mixing Mill/Two Roll Mill / Rubber Mixing Machine

US$5,000.00 1 sets (MOQ)

Basic Info.

Model NO.
CX
Certification
CE
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Roller Width
300mm
Roller Diameter
120mm
Roller Speed
3-12m/Min
Heating Method
Electric Heating
Roller Speed Ratio
Stable
Roller Material
Steel Casting
Function
Rubber or Plastic Mixing Mill
Transport Package
Wooden Package
Specification
HTE
Trademark
chenxing
Origin
Jiangsu, China
HS Code
8477800000
Production Capacity
5000 PCS/Year

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
20.000kg

Product Description

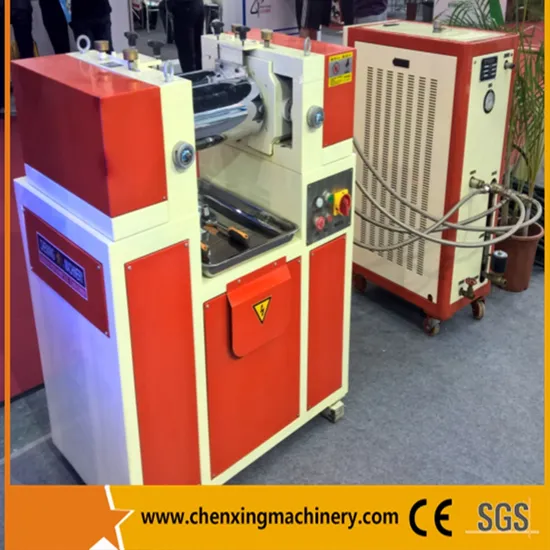

Test Opening Mixing Mill Product Description
This machine is for testing the tension, fisheye and other property test items of PVC, PP, PETG and other plastic sheets. This machine adopts variable frequency driving for accurate control of roller speed. Hot oil drilled roller ensures high precision temperature control.
1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.
2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.
Roller bearing can be divided into 3 kinds, nylon bush, bearing bush and copper bush.
Nip adjustment can be divided into manual and electric.
Stock blender can be added in light of your needs
Main Features
1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wear-resistant. The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus, to meet the requirements of milling process.
2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivity
Product Parameters

Model HTE500 HTR500 HTE300 HTR300
Roller width 500mm 500mm 300mm 300mm
Roller diameter 200mm 200mm 120mm 120mm
Roller speed 3-16m/min 3-16m/min 3-12m/min 3-12m/min
Heating mode Electrical heating Oil heating Electrical heating Oil heating
Roller speed ratio stable adjustable stable adjustable
Detailed Photos

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.
