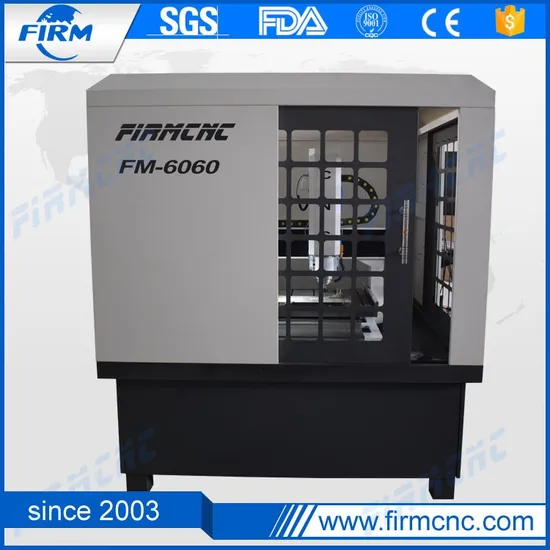

3 Axis 6060 Aluminum Metal Mould CNC Milling Machine

Product Description

Stainless Steel/Aluminum/ Copper/Brass Metal Mould CNC Milling Machine
Applications:
Hard metals,like MS,SS,etc.
Soft metals,like aluminium,brass,etc.
Advantages:
1. Free samples(I can help you process samples for free.)
2.Warranty:2 years
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
Configurations:
# Working area: 600*600*200mm
#The whole cast iron bed,heavy-duty
#3.0kw constant water cooling spindle
# 3.7kw Taiwan Delta Inverter
#750W YASKAWA servo motor and drivers
# Original NC Studio control system
# 1605 Taiwan TBI ball screw
# 20mm Taiwan Hiwin squre rails
# tool sensor
# filter
# ER20 collet
Parameters:

Model	FMM6060
X,Y,Z Working Area	600*600*200mm
Table Size	750*750mm
X,Y,Z Traveling Accuracy	0.01mm
X,Y,Z repositioning Accuracy	0.01mm
Table Surface	T-slot
Frame	Cast iron
X, Y,Z Structure	Taiwan Hiwin linear & TBI Ball Screw
Max. Rapid Travel Rate	20m/min
Max. Working Speed	15m/min
Spindle Power Motor	3.0Kw constant power water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	YASKAWA Servo motor
Working Voltage	AC380V,50HZ, 3PH/220V, 60HZ,1PH
Command Language	G code
Packing Size	1560*1630*1900mm
Packing Weight	1550KG

Our company:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
Other type mould cnc milling machines
Certificates:
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
